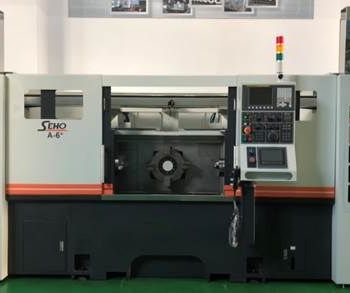

SEHO A-6+ AUTO LOADING CNC LATHE
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Taiwan |
| Category: | CNC Lathes |
| Manufacturer: | Seho |
| Model: | A6+ |
| Description: | Controller: FANUC 0i TD |SPECIFICATION: |Bar capacity: 42mm |Swing over bed: 200mm |Max. turning length: 70mm |Chuck size: 6" |Spindle nose: A2-5 |Spindle bore: 60mm |Spindle bearing- Cylindrical roller bearings: 2 nos |Angular contact ball bgearing: 2 nos |Spindle speed: 5,000rpm |Servo turret: 12 station |Max. travel X axis: 180mm |X axis rapid feed rate: 18m/min |Max. travel Z axis: 520mm |Z axis rapid feed rate: 24m/min |Spindle Motor: 5.5/ 7.5kw *2sets |Auto loading rapid feed rate: 24m/min |Clamping size: 50x60L |Clamping workpiece weight: 5kg |Machine height: 2,200mm |Floor space: 4,300x1,800mm |Machine weight: 4,100kgs |
| Technical Specifications: | Turning length: 70.0 mm Turning Ø: 42.0 mm Ø above the bed: 200.0 mm Type of CNC: FANUC 0i TD X-axis: 180.0 mm Z-axis: 520.0 mm Spindle bore: 60.0 mm Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
