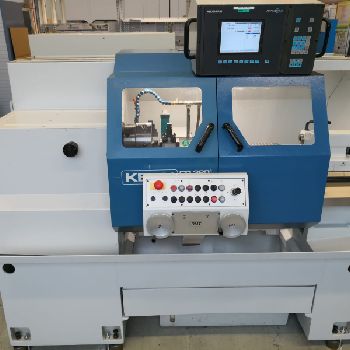

DMT CD 320 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | DMT |
| Model: | CD 320 |
| Year of Make: | 1999 |
| Description: | Description: |Cycles lathe in very good condition. |The following works were carried out in 2019: |- Main spindle gear became compl. renewed |- Main spindle motor compl. outdated. |- Machine compl. maintained / cleaned |- Wear parts renewed |- Machine partially painted |- Surveying protocol available. (Neumaschinenwerte!)|Techn: Data: |Top height 160 mm |Peak width 750 mm |Circumference diameter over bed 320 mm |Circulation over cross slide 150 mm |Circulation in the bend 380 mm |Turning length max. 675 mm |Spindle bore: 52 mm |Speed range: 1 - 4,000 rpm|With the following accessories: |Wedge bar chuck 200mm |Quick Change Tool Holder System Parat |tailstock |Coolant system |chip pan |operating instructions|Dimensions: |Machine LxWxH 2,7x1,95x1,6 mtr. |Weight about 2,200 KG |
| Technical Specifications: | Turning length: 675.0 mm Ø above the bed: 320.0 mm Ø above transversing slide: 150.0 mm Type of CNC: Heidenhain Manual Plus 3110 Spindle bore: 52.0 mm Turning speed: 4000 rpm Tailstock: yes Bar feeder: no Length x width x height: 2700.0 mm × 1950.0 mm × 1600.0 mm Weight: 2200.0 kg State: good At local norms: --------- |
