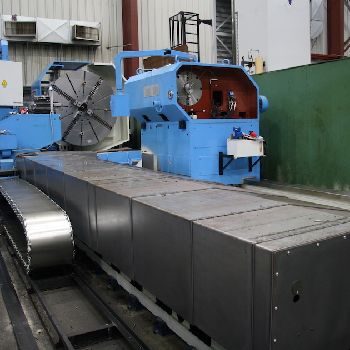

Tacchi DB 132 HS cnc lathe
$ 1,052,793
| Type: | Buy-It-Now |
| Location: | Canada |
| Category: | CNC Lathes |
| Manufacturer: | Tacchi |
| Model: | DB 132 HS |
| Year of Make: | 2015 |
| Description: | TACCHI DB 1400 x 7000. |CNC lathe with SIEMENS 840 D. |New 2015.|Turning Lenght 7.000 mm |Turning Diameter 2.400 mm |Faceplate diameter 2.000 mm |Center height 1.400 mm |Swing over saddle 2200 mm |Allowed weight between centers 60000 kg|HEAD |Spindle motor power in a.c. Brushless 129 kW |Spindle nose 20 |Diameter of spindle at front bearing 710 mm |Spindle bore 160 mm |Infinitely variable speed range 1-250 rpm |Speed range in constant power 9,5-250 rpm |Number of speed 3 |Torque 110000 Nm|TAILSTOCK |Tailstock sleeve diameter 540 mm |Tailstock sleeve stroke 200 mm |Centre cone diam. 160 mm, taper 60|Approx dimensions machine |Length 13.200 mm |Width 5.600 mm |Theoretical weight 82.000 kg |With the machine is a steadyrest carrying 20 Tons. |
| Technical Specifications: | Turning length: 7000.0 mm Turning Ø: 2400.0 mm Type of CNC: SIEMENS 840 D Max workpiece weight: 60000.0 kg Spindle bore: 160.0 mm Turning speed: 250 rpm Spindle motor power: 129.0 kW Tailstock: yes Bar feeder: no Length x width x height: 13200.0 mm × 5600.0 mm × - Weight: 82000.0 kg State: good At local norms: yes |
