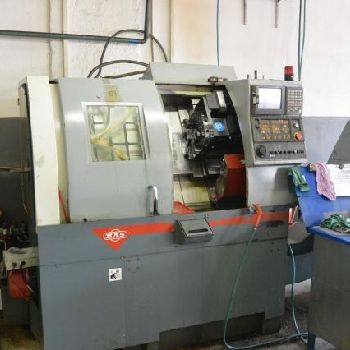

Kovosvit MAS S 42 cnc lathe
$ 23,827
| Type: | Buy-It-Now |
| Location: | Slovakia |
| Category: | CNC Lathes |
| Manufacturer: | KOVOSVIT MAS |
| Model: | S 42 |
| Year of Make: | 2003 |
| Description: | Type: S 42 |Producer: Kovosvit MAS|Description: The machine is in good technical condition, after agreement the possibility of testing. Specifications: |spindle drilling 53mm |spindle diameter under 85 mm front bearing |speed range 1 / min 40-5000 |Support: max. Longitudinal support Z 230mm, max. Travel of the transverse support X 115mm, rapid traverse - longitudinal / lateral 32 / 25mm, ball screw diameter - longitudinal / transversal 32/25, motor power 2.2kW, tank volume 19l |Cooling: engine power 1kW, tank capacity 90l |Tail: pin diameter 50mm, pinhole stroke 100mm, MORSE pinion cone 3 Supplementary data: spindle axis height: 1200mm, number of driven axes 1, bed inclination angle ’60 |Maximum workpiece size: max. Circular diameter: 360mm, max. Circular diameter above support 205mm, max. Workpiece diameter 152mm, maximum machining length 300mm. S Fanuc 21i, accuracy of the H7 hole. Chip conveyor CDT 200. Documentation available. |
| Technical Specifications: | Turning length: 300.0 mm Turning Ø: 360.0 mm Ø above the bed: 205.0 mm Type of CNC: Fanuc 21i X-axis: 115.0 mm Z-axis: 230.0 mm Spindle taper: Morse 3 Spindle bore: 53.0 mm Turning speed: 5000 rpm Spindle motor power: 2.2 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible |
