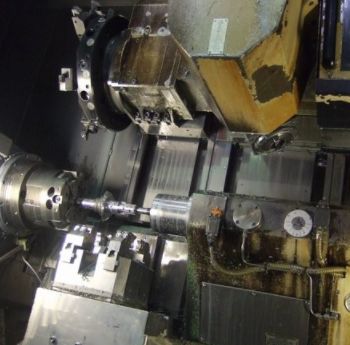

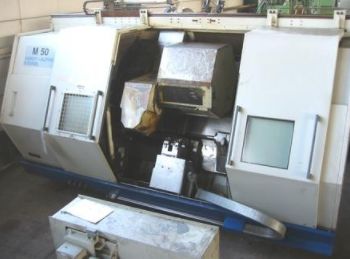

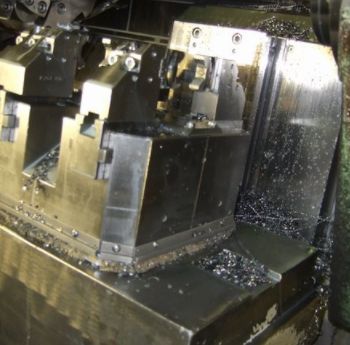

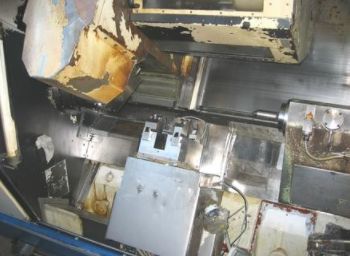

VOEST ALPINE STEINEL M50x1000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | VOEST - ALPINE |
| Model: | M50x1000 |
| Year of Make: | 1992 |
| Description: | Technical details|turning diameter 540 mm |turning length 1000 mm |control SIN880T |power capacity 37,00 kW |turning speeds 8 - 3148 U/min |swing diameter over slide rest 450 mm |greates pass round over bed 540 mm |tool taper SK 40 DIN 69871-A40 |tool magazin: 24-fach |spindle diameter in front bearing 160 mm |spindle bore 115 mm |z-axis 1411 mm |x-axis 380 mm |e-axis 560 mm |max. torque on the spindle max. 1520 |feed range 0 - 10.000 mm/min |rapid traverse 15 m/min |power feed longitudinal 16.500 N |power feed plane 11.000 N |drive milling spindle 15,00 kW |turning speed range - milling 0 - 3000 U/min |b-axis 180 x 0,01 |y-axis 300 mm |quill stroke 160 mm |diameter of quill 140 mm |quill power 3000 - 12000 N |quill taper MK5 |Number of working hours 27.837 h |total power requirement 54,00 kW |weight of the machine ca. 14,00 t |dimensions of the machine ca. 6,30 x 3,40 x H2,70 m |
| Technical Specifications: | Turning length: 1000.0 mm Turning Ø: 540.0 mm Ø above the bed: 540.0 mm Ø above transversing slide: 450.0 mm Type of CNC: SIN880T X-axis: 380.0 mm Z-axis: 1411.0 mm Spindle taper: SK 40 DIN 69871-A40 Spindle bore: 115.0 mm Number of tools on turret: 24.0 Turning speed: 3148 rpm Tailstock: no Bar feeder: no Length x width x height: 6300.0 mm × 3400.0 mm × 2700.0 mm Weight: 14000.0 kg Worked hours: 27837 hours State: good At local norms: --------- |
