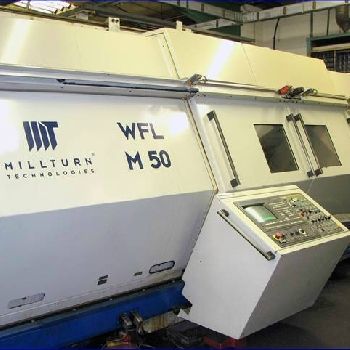

WFL MillturnM50 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | WFL |
| Model: | MillturnM50 |
| Year of Make: | 1993 |
| Description: | Technical details|turning diameter 540 mm |turning length 1600 mm |control SIN880T |power capacity 37,00 kW |turning speeds 4000 U/min |swing diameter over slide rest 450 mm |greates pass round over bed 540 mm |chuck diameter 250 mm |tool taper SK 40 DIN 69871-A40 |tool magazin: 24-fach |spindle diameter in front bearing 120 mm |spindle bore 77 mm |total power requirement 54,00 kW |weight of the machine ca. 14,00 t |dimensions of the machine ca. 6,30 x 3,40 x H2,70 m |Additional information |Turning-, Drilling and Milling Unit: Tool System SK 40 |C- axis; clamping chuck SMW KNCS 250; swarf conveyor; 12-fold turret; |3D Interpolation; electronical hand wheel |Machine is for complete working and can be inspected under power. |The language of the control is ENGLISH!!!!|Technical details and information subject to amendments and errors. |
| Technical Specifications: | Turning length: 1600.0 mm Turning Ø: 540.0 mm Ø above the bed: 540.0 mm Ø above transversing slide: 450.0 mm Type of CNC: SIN880T Spindle taper: SK 40 DIN 69871-A40 Spindle bore: 77.0 mm Number of turrets: 1.0 Number of tools on turret: 24.0 Turning speed: 4000 rpm Tailstock: no Bar feeder: no Length x width x height: 6300.0 mm × 3400.0 mm × 2700.0 mm Weight: 14000.0 kg State: good At local norms: --------- |
