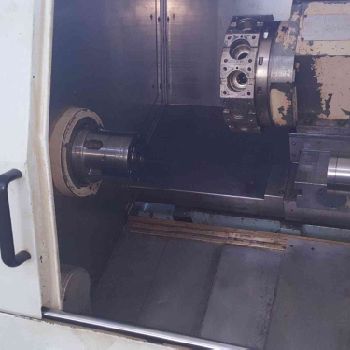

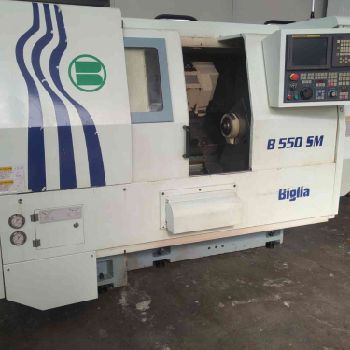

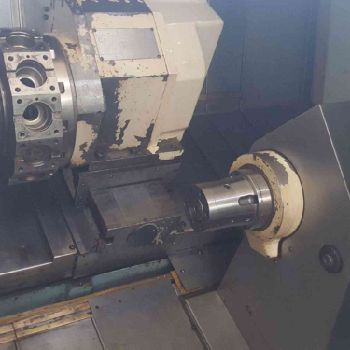

Biglia B 550 SM cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Biglia |
| Model: | B 550 SM |
| Year of Make: | 2005 |

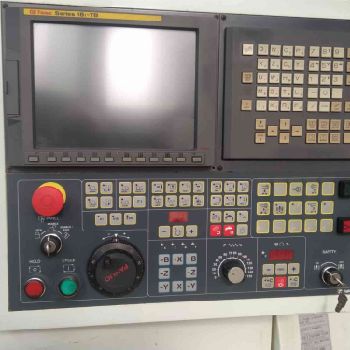

| Description: | Manufacturer: |BIGLIA |Template: |B 550 SM |Year of construction: |2005 |Maximum diameter rotating on the bench: |580 mm |Maximum turning diameter: |296 mm |Maximum turning length: |550 mm |Spindle hole: |76 mm |Chuck attachment Asa DIN55026: |6 " |Spindle rotation speed: |0 - 4,000 rpm |Counter-head rotation speed: |0 - 4,000 rpm |Stroke counter-head: |495 mm |Speed driven tools: |(12) 0 - 3,000 rpm |Spindle motor power: |22 Kw |X-axis fast feed: |20,000 mm / 1 ’ |Z axis rapid advance: |20,000 mm / 1 ’ |CNC: |FANUC 18i-T |Weight: |4,600 Kg |Accessories: |Chip conveyor, driven tools, Axis C |The technical data shown are indicative. |
| Technical Specifications: | Turning length: 550.0 mm Turning Ø: 296.0 mm Ø above the bed: 580.0 mm Type of CNC: FANUC 18i-T Spindle bore: 76.0 mm Turning speed: 3000 rpm Spindle motor power: 22.0 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: 4600.0 kg State: good At local norms: --------- |
