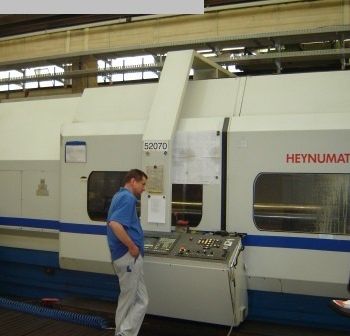

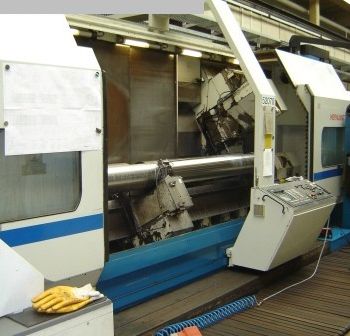

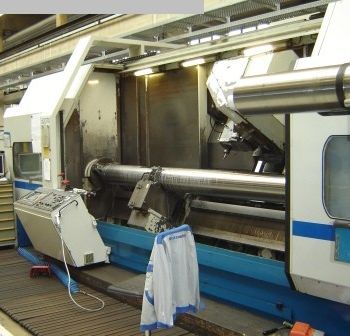

Heyligenstaedt HN35U/4000 Flex cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Heyligenstaedt |
| Model: | HN35U/4000 Flex |
| Year of Make: | 1995 |

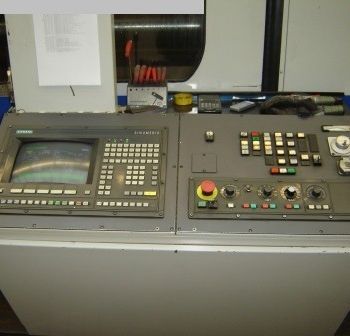

| Description: | turning diameter 890,820 mm |turning length 4000 mm |control Siemens SIN 880T |spindle taper DIN 55026/15 |spindle passage 122 mm |cross movement 500 mm |quill stroke 140 mm |tailstock adjustment 3708 mm |spindle turning speed range 5-1800 U/min |milling tool taper 1500-6000 U/min |feed 0,5-5000 mm/min |rapid traverse 15 m/min |feed power 22000/10000 N |Tool changer 95 St. |steady CNC |tail stock CNC |total power requirement 50/69 kW |weight of the machine ca. 23,5 t |dimensions of the machine ca. 10x4x3,3 m |
| Technical Specifications: | Turning length: 4000.0 mm Turning Ø: 890.8 mm Type of CNC: Siemens SIN 880T Spindle taper: DIN 55026/15 Spindle bore: 122.0 mm Number of tools on turret: 95.0 Turning speed: 1800 rpm Spindle motor power: 69.0 kW Tailstock: yes Bar feeder: no Length x width x height: 10000.0 mm × 4000.0 mm × 3300.0 mm Weight: 23500.0 kg State: good At local norms: --------- |
