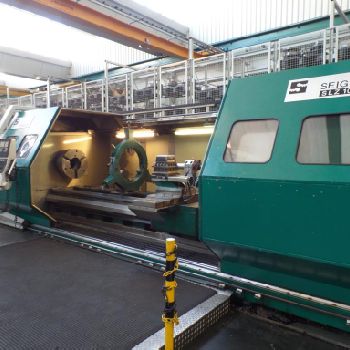

Seiger SLZ 1000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | SEIGER |
| Model: | SLZ 1000 |
| Year of Make: | 2007 |
| Description: | Make SEIGER |Type SLZ 1000 |Control SINUMERIK 840 D |Year 2007|Workspace |Circulation diameter . Bed / flat disc 1.200 / 850 mm |Distance between centers 4000 mm |Displacement of the slide valve 680 mm |Bed width 750 mm |Turning tool 40 * 40 mm|main spindle |Spindle head according to DIN 55026 Gr. 15 |Spindle diameter in the front bearing 360 mm |Spindle bore 200 mm |Drive power 100% / 60% ED 37/52 kW |Max. Torque at the spindle 6,000 Nm |Speed range from 3.55 to 910 min-1 |feed drives |Feed force X 100% ED 20,000 N |Feed force Z 100% ED 30,000 N |Rapid traverse X 3 m / min |Rapid traverse Z 6 m / min|tailstock |Quill diameter 160 mm |Quill 300 mm |Sleeve mount MK 6|torque |X - axis 27 Nm |Z - axis 50 Nm|Max. Workpiece weight |Between tips without bezel 5,000 kg |Between tips with bezel 6,000 kg |Between tips with two steady rests 7.000 kg |Flying in the faceplate 1,800 kg |Center distance 250 mm|Dimension, weight |Machine 8,500 x 5,000 x 3200 mm |Weight |
| Technical Specifications: | Turning length: 4000.0 mm Turning Ø: 1200.0 mm Ø above the bed: 1200.0 mm Ø above transversing slide: 850.0 mm Length between centers: 4000.0 mm Type of CNC: SINUMERIK 840 D X-axis: 680.0 mm Z-axis: 4000.0 mm Max workpiece weight: 7000.0 kg Spindle taper: 15 Spindle bore: 200.0 mm Number of turrets: 4.0 Number of tools on turret: 4.0 Turning speed: 910 rpm Spindle motor power: 52.0 kW Tailstock: yes Bar feeder: no Length x width x height: 8500.0 mm × 5000.0 mm × 3200.0 mm Weight: 14500.0 kg State: excellent At local norms: yes Status: under power |
