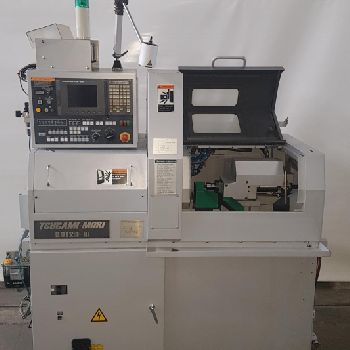

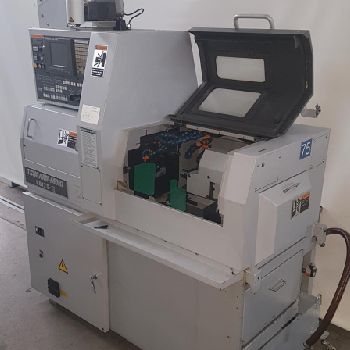

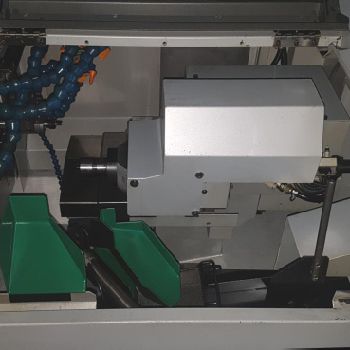

TSUGAMI BO 12 E Multispindle automatic lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Multi-spindle lathes |
| Manufacturer: | Tsugami |
| Model: | BO 12 E |

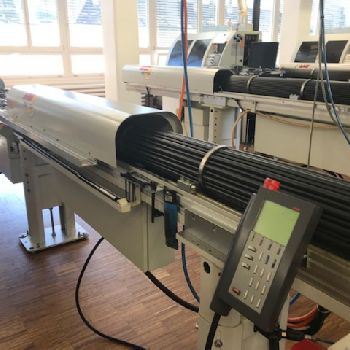

| Description: | Technical data |Number of axis total |5 |Number of spindles |2 |Max. turning diameter |12 mm |Turning length |210 mm |Max. drilling diameter |7 mm |Spindle speeds: |stepless |from |200 rpm |up to |12000 rpm |Back spindle: |speeds: |from |200 rpm |up to |12000 rpm |Rapid traverse: |32 m/min |Machine’s weight about |2100 kg |Overall dimensions machine: |Length |1900 mm |Width |1200 mm |Height |2100 mm |Various accessories: |Bar feeder |Manufacturer |LNS |Type |TRYTON 112 |Length of bars max. |3200 mm |Bar diameter |1 - 12.7 mm |Lamp |
| Technical Specifications: | Max. Ø: 10.0 mm Nbr of spindles: 2.0 Max. length: 170.0 mm Type: CNC Nbr of axes: 10.0 Number of tools: 12.0 Spindle speed: 10000 rpm Spindle power: 3.7 kW Length x width x height: 2480.0 mm × 1585.0 mm × 1733.0 mm Weight: 4500.0 kg State: good At local norms: --------- |
