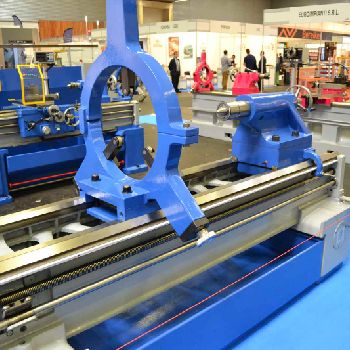

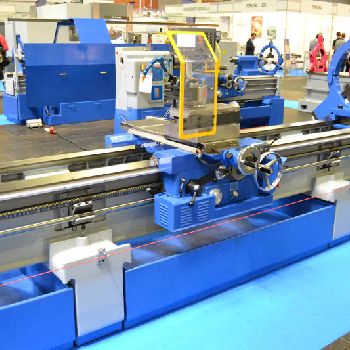

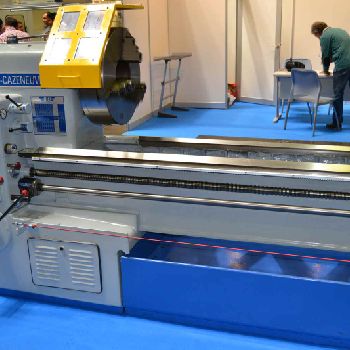

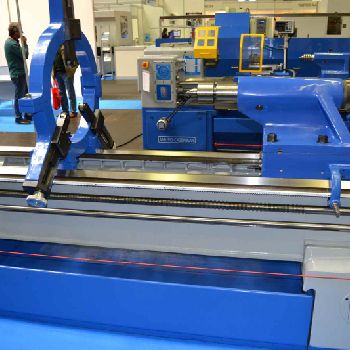

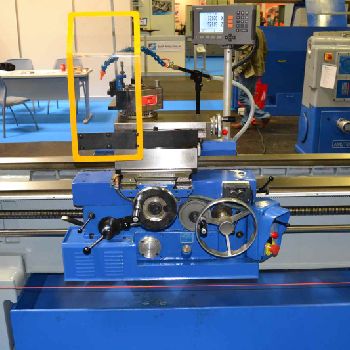

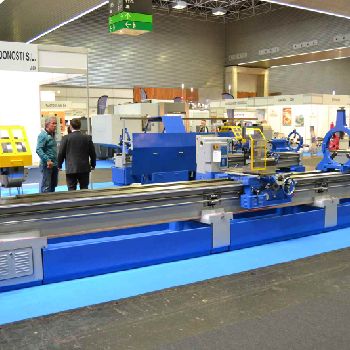

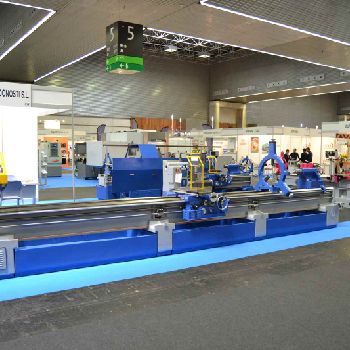

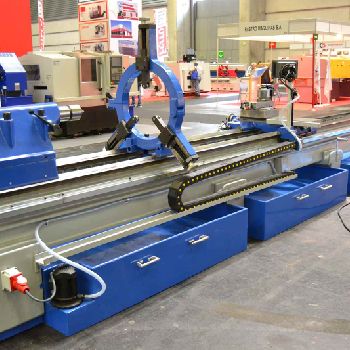

Amutio Cazeneuve HB810 x 6000 heavy duty lathe
$ 75,752
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Lathes |
| Manufacturer: | AMUTIO CAZENEUVE |
| Model: | HB810 x 6000 |
| Description: | Rebuilt. |Distance between centers: 6000 mm. |Diameter above the bed: 810 mm. |Diameter above the carriage: 770 mm. |Diameter above cross slide: 500 mm. |Height of center: 365 mm. |Number axis spindle speed: 18. |Spindle bore: 81 mm. |Cone of the tailstock: CM-6 |Width of the bed: 505 mm. |Course maximum of the cross slide: 400 mm. |Course maximum of the adjustable carriage: 220 mm. |Course maximum of the cane of the tailstock: 235mm. |Machine weight: 5750 kg. |Power: 25-20-15 cv. |Machine dimensions: 7640x1270x1405 mm. |Equipped with universal chuck of 400 mm and steady rest. |CE protections in chuck and carriage and CE european certificate for second hand machines. |Optional: DRO Fagor or Heidenhain. |Optional: CE back guard. |
| Technical Specifications: | Length between centers: 6000.0 mm Turning length: 6000.0 mm Center height: 365.0 mm Ø above the bed: 810.0 mm Ø above transversing slide: 500.0 mm Faceplate diameter: 400.0 mm Spindle bore: 81.0 mm Turning speed: 1250 rpm Overhauled: yes Year of overhauling: 2018.0 Length x width x height: 7640.0 mm × 1270.0 mm × 1405.0 mm Weight: 5750.0 kg State: rebuilt At local norms: yes Status: visible |
