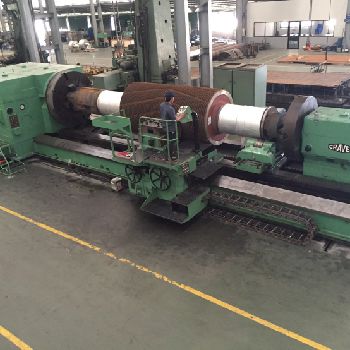

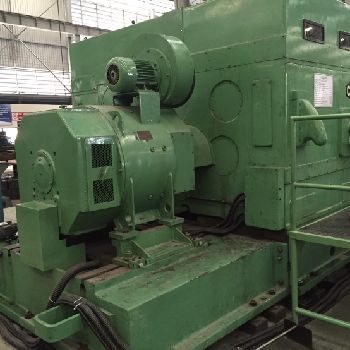

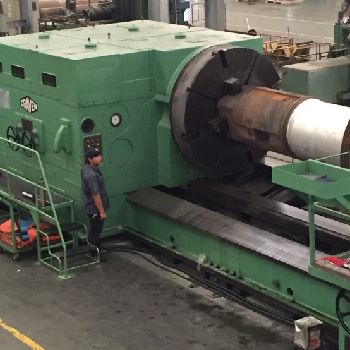

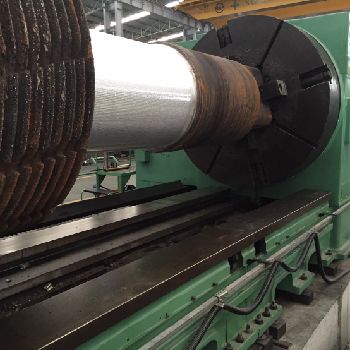

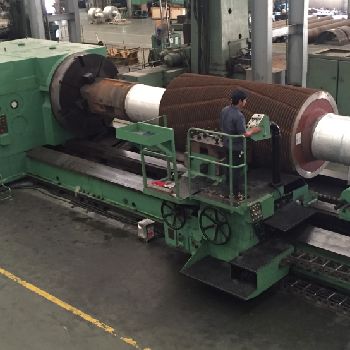

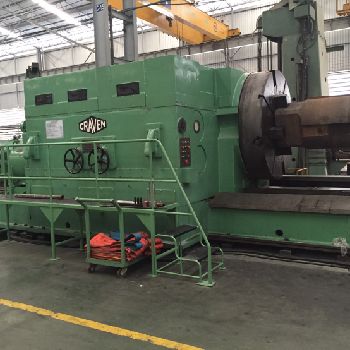

Craven HD heavy duty lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Thailand |
| Category: | Lathes |
| Manufacturer: | CRAVEN |
| Model: | HD |
| Year of Make: | 1975 |
| Description: | Maximum swing over bed: 1800 mm |Maximum swing over saddle: 1680 mm |Between centres: 9000 mm |Maximum workpiece weight (held between 2 chucks): 70 tons |4-jaw chuck diameter: 1500 mm |Spindle speeds: 0.5-30 rpm |Width across bed: 2500 mm |Drive motor: 150 kW |Weight of machine: 155 tons|+ Condition: Excellent. Under power. |+ Location: Bangkok |+ CIF price on request |
| Technical Specifications: | Length between centers: 9000.0 mm Max. turning Ø: 1800.0 mm Turning length: 9000.0 mm Center height: 900.0 mm Ø above the bed: 1800.0 mm Ø above transversing slide: 1680.0 mm Faceplate diameter: 1500.0 mm Max workpiece weight: 70000.0 kg Overhauled: yes Year of overhauling: 2016.0 Length x width x height: 17000.0 mm × 5000.0 mm × 3000.0 mm Weight: 155000.0 kg State: excellent At local norms: --------- Status: in production |
