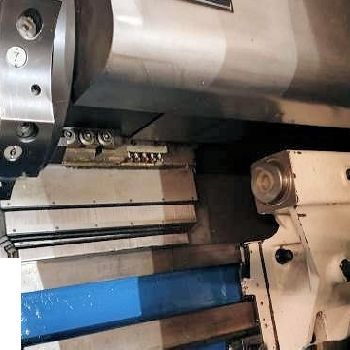

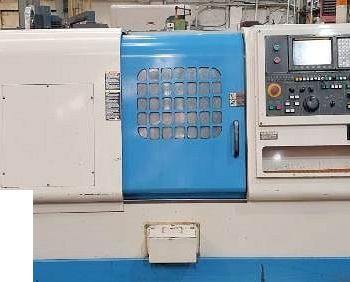

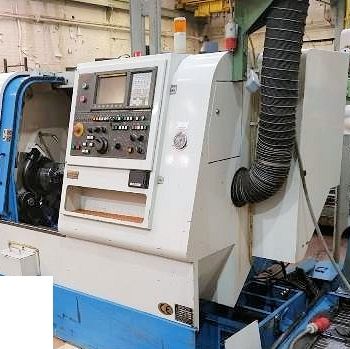

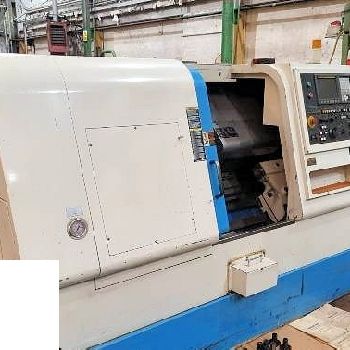

Dugard EAGLE 200MC cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | CNC Lathes |
| Manufacturer: | Dugard Eagle |
| Model: | EAGLE 200MC |
| Year of Make: | 2004 |
| Description: | Swarf Conveyor, C axis & Milling, Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Parts Catcher, Manuals, Tooling|Control FANUC Oi |Swing 470mm |Bar Capacity 52mm |Chuck Size 210mm |Distance Between Centers 620mm |Maximum Cutting diameter 292mm |Maximum Cutting Length 500mm |Turret Positions 12 Station (6 powered) |Rapid Feedrates 30m/minute |Spindle Motor Power 7.5kW |Spindle Nose A2-6 |Spindle Speed 4500rpm |Tailstock Quill Diameter 100mm |Tailstock Quill Stroke 75mm |Tailstock Taper MT 4 |Tool Size VDI30 |C axis 0.001 degree |X axis Travel 176mm |Z axis Travel 520mm |Machine Dimensions 3800 x 1700 x 1600mm |Machine Weight 3950kg |
| Technical Specifications: | Turning length: 500.0 mm Turning Ø: 292.0 mm Ø above the bed: 470.0 mm Length between centers: 620.0 mm Type of CNC: FANUC Oi X-axis: 176.0 mm Z-axis: 520.0 mm Spindle taper: A2-6 Number of tools on turret: 12.0 Number of rotating tools: 6.0 Turning speed: 4500 rpm Spindle motor power: 7.5 kW Tailstock: no Bar feeder: no Length x width x height: 3800.0 mm × 1700.0 mm × 1600.0 mm Weight: 3950.0 kg State: good At local norms: --------- |
