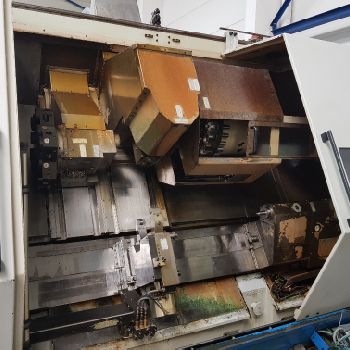

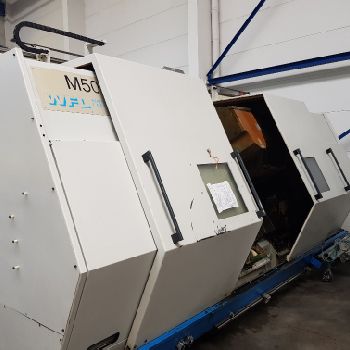

Wfl Voest Alpine M50 x 1600 cnc universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | VOEST - ALPINE |
| Model: | M50 x 1600 |
| Year of Make: | 1996 |
| Description: | Category CNC Turning and Milling Center |Product WFL-VOEST-ALPINE STEINEL |Type M 50 x 1600 |Year 1996 |Control Siemens 840 C |Country of origin Austria |Delivery time Immediately |Freight base from stock |Technical details |Turning diameter 450 mm |Turning length 1200 mm |Control Siemens 840 C |Circumference diameter over bed 540 mm |Circumferential diameter over slide 450 mm |Spindle bore 77 mm |Spindle speeds 10 - 3150 rpm |c-axis 0.001 / deg. |y-axis 160 (+/- 80) mm |b-axis 180 (+/- 90) / deg. |x-way 380 mm |z-way 2031 mm |Milling spindle speed range 1-3000 rpm |Milling length 2031 mm |Machine weight approx. 10.5 t |Space required approx. 6248 x 3302x 2700 mm|* Tool changer with 24 tools |* Spindle internal cooling |* NC tailstock, quill drm. 100 mm |* NC steady rest, SMW, SLU-4-ZS, clamping range 35-245 mm |* Y axis |* B axis |* Chip conveyor |* High pressure cooling with filtration |* Power chuck, diameter 315 mm KNC |* various tool holders |
| Technical Specifications: | Turning length: 1200.0 mm Turning Ø: 450.0 mm Ø above the bed: 540.0 mm Ø above transversing slide: 450.0 mm Type of CNC: Siemens 840 C X-axis: 380.0 mm Z-axis: 2031.0 mm Spindle bore: 77.0 mm Number of turrets: 24.0 Turning speed: 3000 rpm Tailstock: no Bar feeder: no Length x width x height: 3300.0 mm × 2500.0 mm × 2700.0 mm Weight: 10500.0 kg State: good At local norms: --------- Status: visible |
