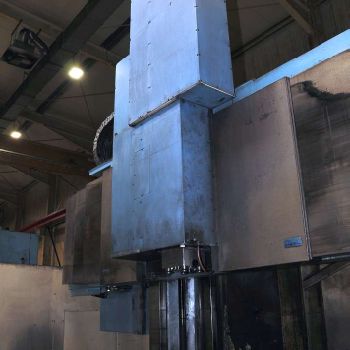

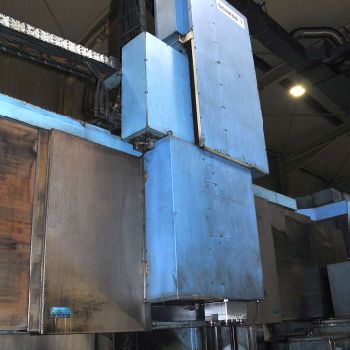

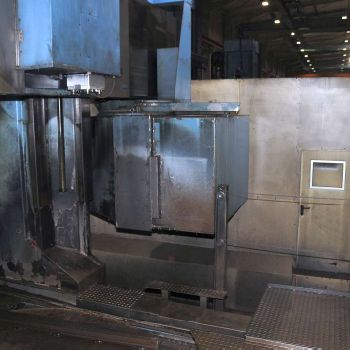

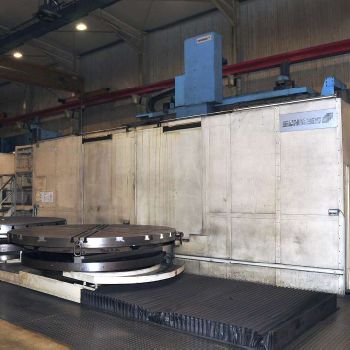

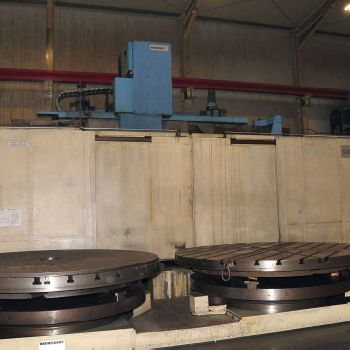

Schiess VMG 4-PWS vertical turret lathe Double Column with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Schiess |
| Model: | VMG 4-PWS |
| Year of Make: | 2002 |

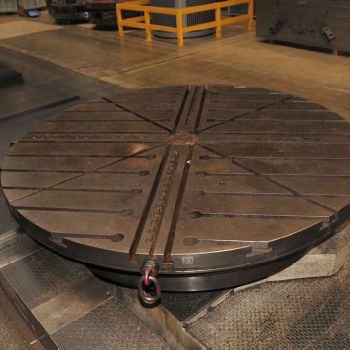

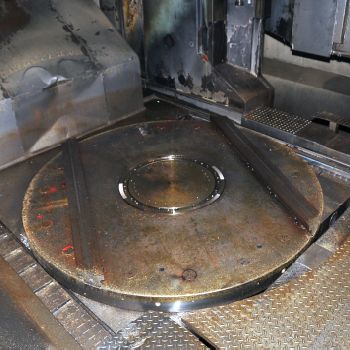

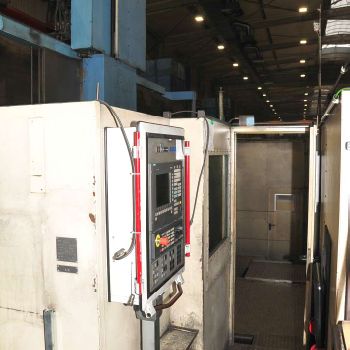

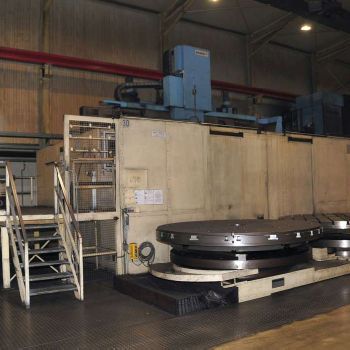

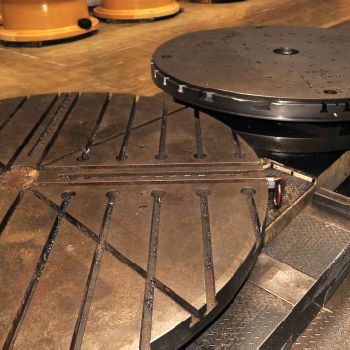

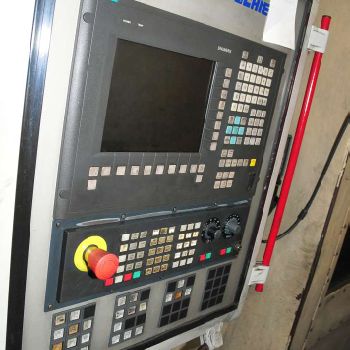

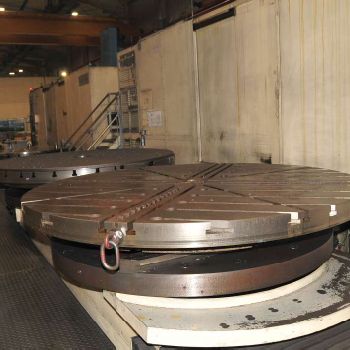

| Description: | Vertical Turret Lathe - Double Column SCHIESS VMG 4-PWS|Vertical lathe with driven tools, linear axis and pallet changing system|Control SINUMERIK 840D |Speeds max. 3150 U/min |Tool taper SK 50 |Total power requirement 160 kW|Max. Turning and swing diameter - 3200 mm |Portal passage width - 3000 mm |Max. Machining / workpiece height (turning) - 2350 mm |Max. Machining / workpiece height (milling) - 2310 mm |Max. Workpiece weight - 25000 kg |Diameter of the machine clamping station (pallet) - 3000 mm |Groove type shaped /cartesian |Groove width - 36 H12 mm |Number of integrated cocking slides - 4 pieces |Stepless speed - for turning 0,50 - 180 rpm |Stepless speed - for milling 0.0004 - 4 rpm |Max. Torque on the faceplate - 75 kNm |Main drive power - 110 kW |Horizontal adjustment of the support - 1900 mm |Horizontal adjustment of the support - 2800 mm |Horizontal guide length of the support - 1000 mm |Prism height of the support guide - 1000 mm |Vertical adjustment of |
| Technical Specifications: | Plate diameter: 3000.0 mm Working height: 2350.0 mm CNC type: SINUMERIK 840D Max piece weight: 25000.0 kg Rotation speed: 3150 rpm Motor power: 110.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
