INNSE TVM 450/5 Ø 9800 mm CNC vertical turret lathe with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium |
| Category: | Vertical Turret Lathes |
| Manufacturer: | INNSE BERARDI |
| Model: | TVM 450/5 Ø 9800 mm CNC |

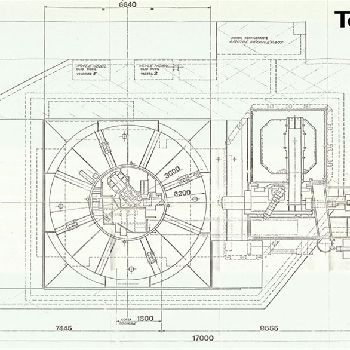

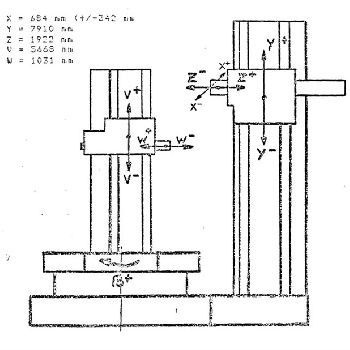

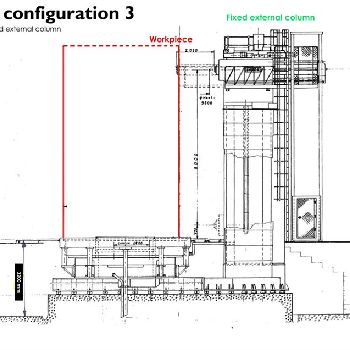

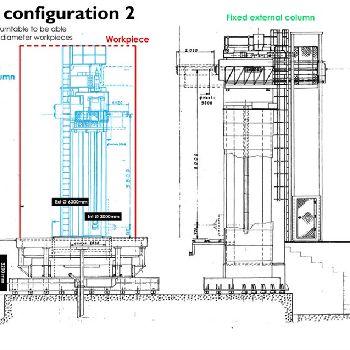

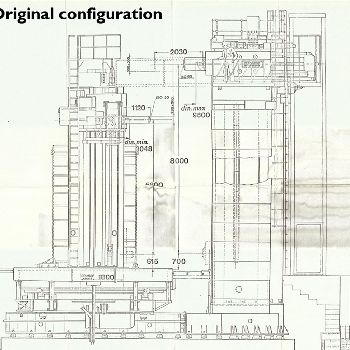

| Description: | Type: TVM 450/5 |Exceptional milling machine & turning vertical lathe capable of processing very large workpieces. Both internal and external diameter of the workpieces can be machined!! |Machine consists from a fixed external column and movable internal column.|Turntable: |> external dia: 6300 mm |> internal dia: 3000 mm |> largest dia of workpiece: 9800 mm |> smallest dia of workpiece: 2220 mm |> max weight on table: 300 ton |> rotational speed: 0,08 > 27 r/mm |> rotational speed while turning/milling: 0,000058 > 1,4 r/mm|Fixed external column: |> ram size: 550 x 550 mm |> dia of spindle: 304,8 mm |> ISO 60 - 37 kW on spindle |> max height of external turning/milling: 8700 mm |> min height of external turning/milling: 700 mm |> vertical stroke: 8000 mm |> horizontal stroke: 2030 mm|Movable internal column: |> ram size: 280 x 280 mm |> max dia of internal turning/milling: 5180 mm |> min dia of internal tur |

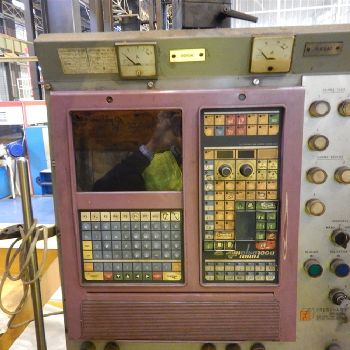

| Technical Specifications: | Plate diameter: 9800.0 mm Working height: 8700.0 mm CNC type: CNC Max piece weight: 300000.0 kg Rotation speed: 27 rpm Motor power: 250.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
