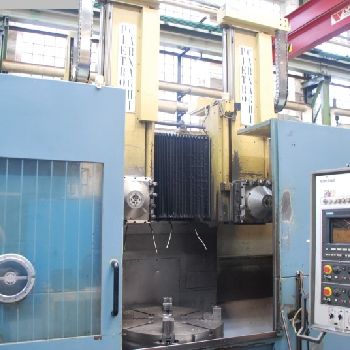

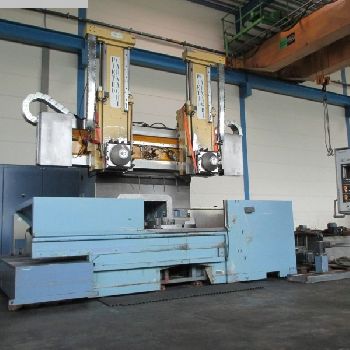

PIETRO CARNAGHI ATF 10 vertical turret lathe with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Pietro Carnaghi |
| Model: | ATF 10 |
| Year of Make: | 2014 |

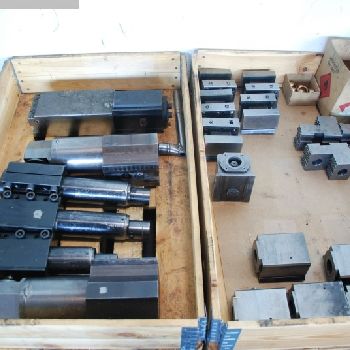

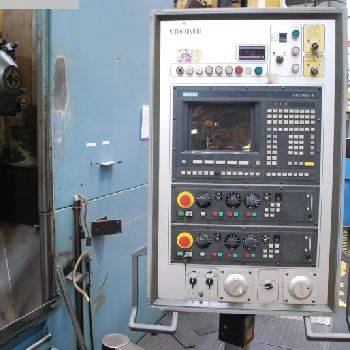

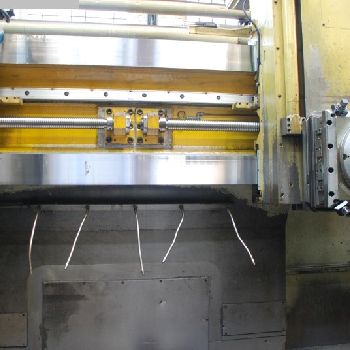

| Description: | Type of machine Vertical Turret Lathe - Single Column |Make PIETRO CARNAGHI |Type ATF 10 |Year of manufacture 1994 |Type of control CNC|Technical details |faceplate diameter 1000 mm |swing diameter 1150 mm |turning height 750 mm |travel -x axis 1100 mm |travel -z axis 750 mm |power requirement 60 kW |turning speed range - faceplate 10-643 U/min |feeds 0,1-2000 mm/U |workpiece weight 8000 kg |turret I 4 Wkzg. |turret II 4 Wkzg. |control CNC Sinumerik 880 T |total power requirement 128 kW |weight of the machine ca. 25 t |Additional information |overhauled in 2014! |- guideways grounded |- main motor and 2 axis motors overhauled |- ball screws renewed |- all tubes renewed |- measuring system partially renewed |with lots of tools and hydraulic 3-jaws chuck! |
| Technical Specifications: | Plate diameter: 1000.0 mm Working height: 750.0 mm CNC type: CNC Sinumerik 880 T Max piece weight: 8000.0 kg Rotation speed: 643 rpm Motor power: 60.0 kW Overhauled: yes Year of overhauling: 2014.0 Length x width x height: - × - × - Weight: 25000.0 kg State: excellent At local norms: yes |
