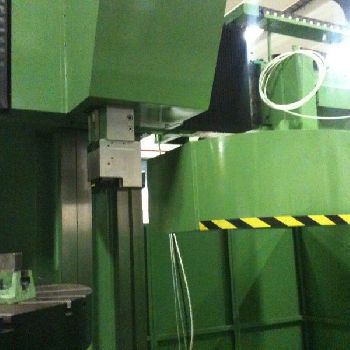

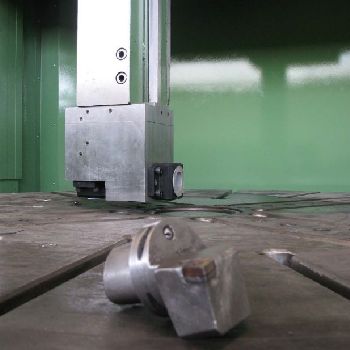

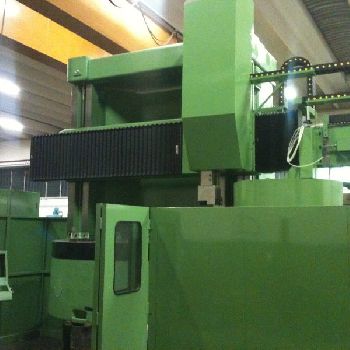

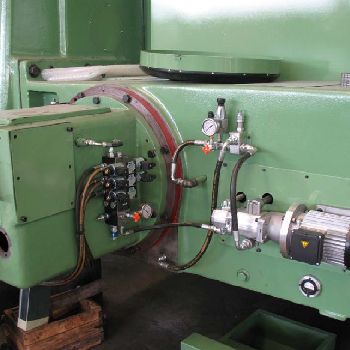

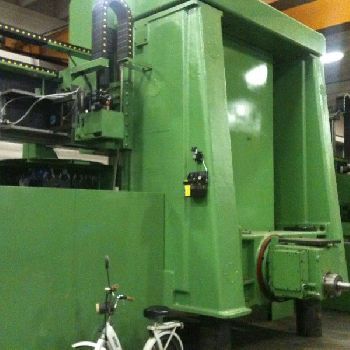

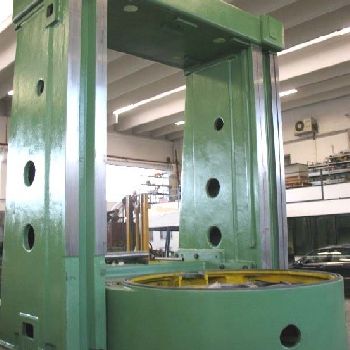

Sedin 2100 vertical turret lathe with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Vertical Turret Lathes |
| Manufacturer: | GORBREX |
| Model: | 2100 |
| Year of Make: | 1999 |
| Description: | TECHNICAL FEATURES| platform diameter with 4 independent clamps mm. 2100| Max. Diameter diameter mm. 2300| Maximum retractable height mm. 1350| maximum permitted load on platform Kg. 20000| spindle motor power KW 60| Number of speed ranges 4| Ram section mm. 220x210| vertical stroke Ram mm. 950| tool storage capacity n 9 + 9| Tool type type CAPTO 8|Machine completely revised| Double hydraulic tool attachment, CAP 8| Ball bearings recirculating on axles| Perimeter wrap, two front doors, one side dx for warehouse access| Manuals for the CNC| Machine and operator manuals| CE mark |
| Technical Specifications: | Plate diameter: 2100.0 mm Working height: 1350.0 mm CNC type: FAGOR 8055 TC Max piece weight: 20000.0 kg Motor power: 60.0 kW Overhauled: yes Length x width x height: - × - × - Weight: - State: revised At local norms: yes Status: visible |
