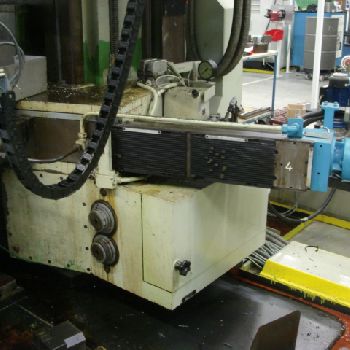

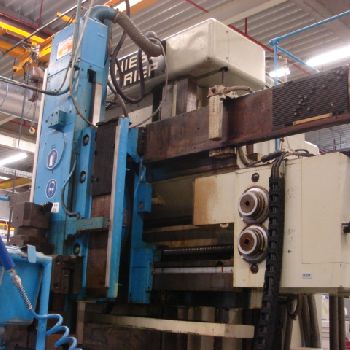

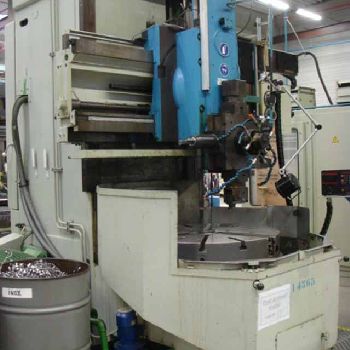

Schiess Froriep 14 DK 100 A vertical turret lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | India |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Schiess Froriep |
| Model: | 14 DK 100 A |
| Year of Make: | 1977 |
| Description: | Single column vertical turret lathe|Specifications:|Make: SCHIESS FRORIEP|Type: 14 DK 100 A|Year: 1977|Faceplate diameter: 1000 mm|Swing diameter: 1400 mm|Turning height: 1200 mm|Faceplate turning speed range: 6,3 - 315 RPM|Workpiece weight max.: 4000 kg|Ram head - vertical travel: 1000 mm|Ram head - cross travel: 995 mm|Cross rail adjustment - vertical: 500 mm|Feeds - stepless: 0,1 - 2000 mm/min|Rapid traverse: 6 m/min|Main drive motor: 30 kW|Total power requirement: 45 kW|Weight of the machine approx.: 14,5 T|Dimensions of the machine approx.: 3,5 x 5,5 x 4,0 m|Equipped with:|Coolant device, Miscellaneous tool holder, Side support|Machine Condition: Dismantled / De-commissioned|Set of machine tooling, tool holders which are part of the machine is included. |
| Technical Specifications: | Ø: 1400.0 mm Plate diameter: 1000.0 mm Working height: 1200.0 mm Max piece weight: 4000.0 kg Rotation speed: 315 rpm Motor power: 45.0 kW Overhauled: no Length x width x height: 3500.0 mm × 5500.0 mm × 4000.0 mm Weight: 14500.0 kg State: good At local norms: --------- Status: dismantled |
