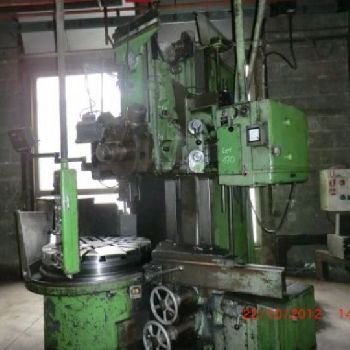

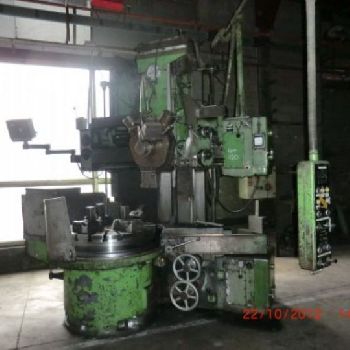

SCHIESS 1400MM vertical turret lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Schiess |
| Model: | 1400MM |
| Description: | SCHIESS 1400 MM |Diameter of the plate 1000 mm |Max. 1400 mm |Max. Machining height 1200 mm |Tray rotation speed 6.3 - 315 rpm |Max. Load on 4,000 kg tray |Vertical stroke of the 1000 mm |Trailer horizontal travel 995 mm |Vertical run of the crossbar 500 mm |Work feeds 0.1 - 2000 mm / min |Fast feeds 6 m / min |Main motor power 30 kW |Total power required 45 kW |Machine weight approx. 14.5 T |Dimensions of the machine approx. 3.5 x 5.5 x 4.0 m |
| Technical Specifications: | Ø: 1400.0 mm Plate diameter: 1000.0 mm Working height: 1200.0 mm Max piece weight: 4000.0 kg Rotation speed: 315 rpm Motor power: 45.0 kW Overhauled: no Length x width x height: 3500.0 mm × 5500.0 mm × 4000.0 mm Weight: 14500.0 kg State: good At local norms: --------- Status: visible |
