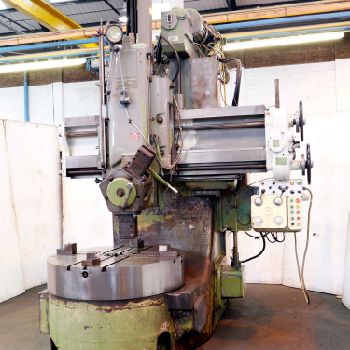

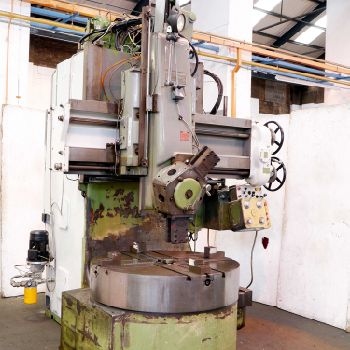

WEBSTER & BENNETT EM 48 vertical turret lathe
$ 41,329
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Webster & Bennett |
| Model: | EM 48 |

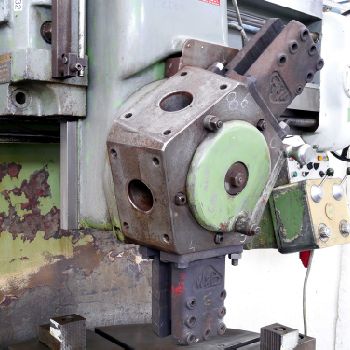

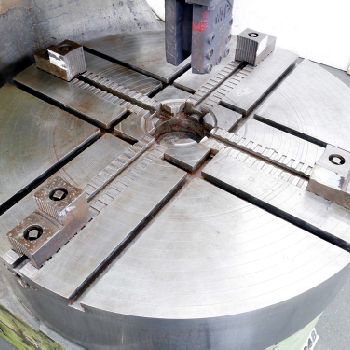

| Description: | Table Size 48" / 1219mm |Swing 60 / 1524mm |Height under cross slide 47 / 1194mm |Cross slide rise & fall 22 / 559mm |Turret rise & fall 38 / 965mm |Turret traverse 36 / 914mm |Speeds 4.5-100 rpm |Feed rate 0.005-0.250 / 0.127mm-6.35mm |Input 380/420/3/50 ac 25 hp |Fitted with 5 Way Turret |Length 10’4 / 3.15m |Width 7’10 / 2.39m |Height 11’10 / 3.61m |Nett weight actual. 12.1/2 ton / 12,700 kgs |
| Technical Specifications: | Ø: 1524.0 mm Plate diameter: 1219.0 mm Working height: 1194.0 mm Rotation speed: 100 rpm Motor power: 18.6 kW Overhauled: no Length x width x height: 3150.0 mm × 2390.0 mm × 3610.0 mm Weight: 12700.0 kg State: good At local norms: --------- Status: visible |
