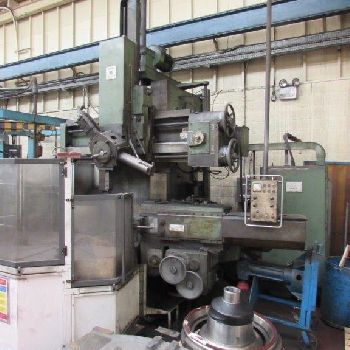

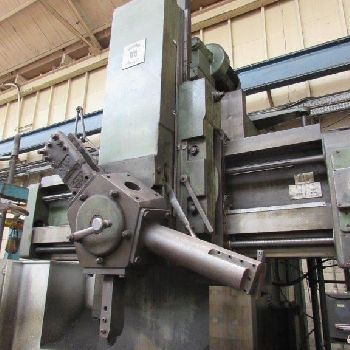

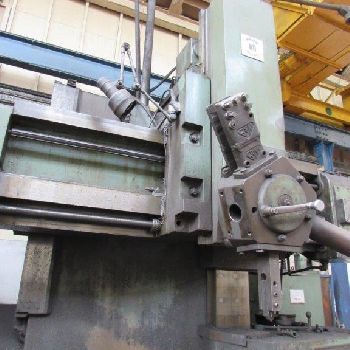

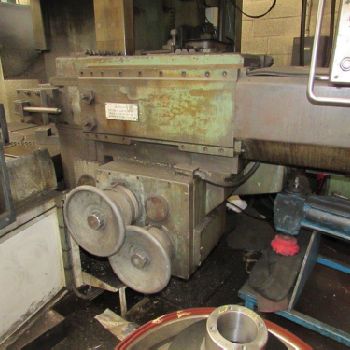

Webster & Bennett Q 72 vertical turret lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Webster & Bennett |
| Model: | Q 72 |
| Year of Make: | 1979 |
| Description: | Table Size 72" / 1829mm |Swing 76 / 1930mm |Height under cross slide 60 / 1524mm |Cross slide rise & fall 36 / 914mm |Side head rise and fall 32 / 813mm |Ram In/Out 30 / 762mm |Turret rise & fall 38 / 965mm |Turret traverse 44 / 1117mm |Speeds 3.7 - 83 RPM |Feed rate 0.156 - 7.5 mm |Input 380/3/50 37 kW |Fitted with Pendant control, coolant, table guards and 3 x turret tools. |Length 12’ 6 / 3.81m |Width 12’ 2 / 3.71m |Height 11’ 10 / 3.61m |Nett weight actual. 21,170 Kgs (20.84 Tons) |
| Technical Specifications: | Ø: 1930.0 mm Working height: 1524.0 mm Rotation speed: 83 rpm Motor power: 37.0 kW Overhauled: no Length x width x height: 3810.0 mm × 3710.0 mm × 3610.0 mm Weight: 21170.0 kg State: good At local norms: --------- Status: visible |
