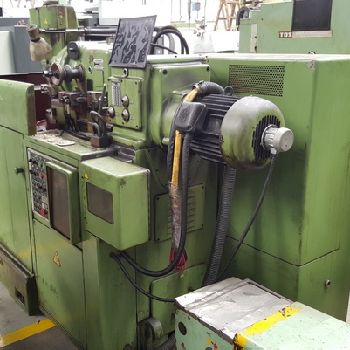

Tos Čelákovice OFP 20 Vertical gear hobbing machine
$ 6,148
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Hobbing Machines |
| Manufacturer: | TOS Celakovice |
| Model: | OFP 20 |
| Description: | maximum module: 4 |max. diameter of the milled wheel: 200 mm |max. width of the milling wheel with straight teeth: 200 mm |max. width of the milling wheel with inclined teeth 45 : 160-140 mm |min. tool axis and table axis: 25 mm |Max tool axis and table axis: 195 mm |diameter of the table: 250 mm |cone in spindle: Morse 4 |max. cutter diameter / max. milling width: 140/135 mm |vertical movement of the clamping table: 210 mm |axial movement of the milling spindle: 50 mm |maximum distance of the cutter axis. spindles from top table top: 400 mm |spindle speed: degrees 9 |range: 0.4-6 mm / rev |feed rate of the milling support: 0.24-3.4 mm / rev |electric motor for spindle drive: 5.5 kW |electric motor for table feed: 3 kW |ground plan area: 1510 x 2020 mm |machine weight: 5,000 kg |Price by agreement. |
| Technical Specifications: | Module +: 4.0 Length x width x height: 1510.0 mm × 2020.0 mm × - Weight: 5000.0 kg State: good At local norms: --------- Status: visible but unplugged |
