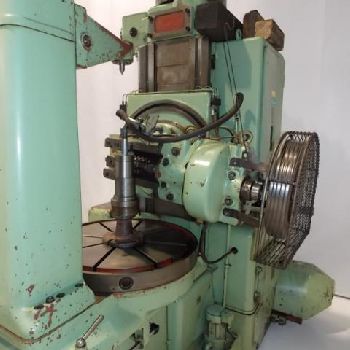

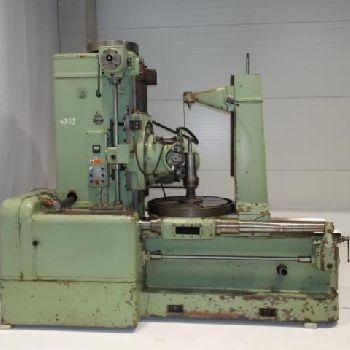

TOS Čelákovice FO 10 Gear shaping machine
$ 18,246
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Gear Processing Machinery |
| Manufacturer: | TOS Celakovice |
| Model: | FO 10 |
| Description: | Technical details: |Specifications: |Largest milling wheel module 10 |The largest diameter of the milling wheel |when using a support stand mm 750 |without the support stand mm 1000 |Largest width of the milled wheel |with a wheel diameter of more than 850 mm mm 400 |with wheel diameters below 850 mm mm 350 |Smallest number of milled teeth 12 |Distance of the milling spindle from the table area mm 280 - 740 |Axis of milling spindle and clamping mandrel mm 50 - 720 |Diameter of chuck table mm 850 |Drilling of clamping table mm 100 |Cutting depth drilling depth mm 360 |Diameters of milling pins mm 32,40 |Diameter of chuck mm 50 |Milling spindle speed |number of degrees 9 |range min - 1 20 - 125 |Vertical feed of the milling support |number of degrees 36 |range to 1 table turn mm 0.2 - 6 |Tangential feed of the milling support |number of degrees 36 |Range per table turn mm 0,133 - 4 |Longitudinal movement of the clamping table |number of degrees 36 |range at 1 |
| Technical Specifications: | Max wheel Ø: 1000.0 mm Module +: 10.0 CNC: No Max. gear width: 400.0 mm Motor power: 7.5 kW Length x width x height: 3120.0 mm × 1870.0 mm × 2525.0 mm Weight: 8700.0 kg State: good At local norms: --------- |
