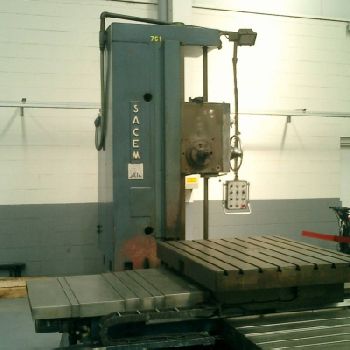

Sacem MST-XC 110 Floor type boring machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Sacem |
| Model: | MST-XC 110 |
| Description: | Horizontal boring machine with 2-axis display (transversal and vertical)|Diameter of the spindle: 110 mm |Main spindle cone: ISO 50 |Diameter of assembly of milling cutters on the lining of the spindle: 221.44 (ISO 60) |Displacement of the main spindle: 800 mm |Vertical course of the spindle: 1000 mm |Height of the main spindle of the table (min / max): 0-1250 mm |Number of spindle speeds: 18 |Speed (min / max): 10-1000 rpm |Dimensions of the table: 1200x1450 mm |Automatic transverse course: 1700 mm |Automatic longitudinal course (with bezel): 1000 mm |Automatic longitudinal course (without bezel): 1350 mm |Bed width: 900 mm |Max distance between spindle liner and bezel bearing: 2160 mm |Number of advances in all directions: 27 |Range of advances per revolution: 0.03-12 mm |Fast gears in all movements: 3000 mm / min |Metric step numbers: 15 |Range of metric steps: 0.25-12 mm |Number of steps Whitworth: 12 |Whitworth steps range: 2-96 |Table rotation with 90 lock: |
| Technical Specifications: | X Axis: 1350.0 mm Y Axis: 1700.0 mm Z Axis: 1000.0 mm Table length: 1450.0 mm Table width: 1200.0 mm Spindle diameter: 110.0 mm Max. spindle speed: 100 rpm Spindle motor power: 13.4 kW Overhauled: no Length x width x height: 4635.0 mm × 4025.0 mm × 2980.0 mm Weight: 13000.0 kg State: revised At local norms: --------- |
