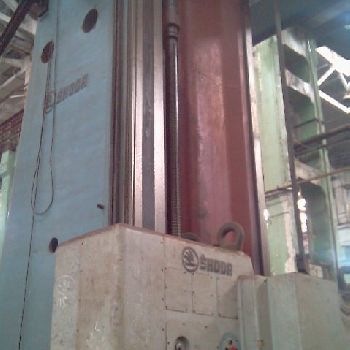

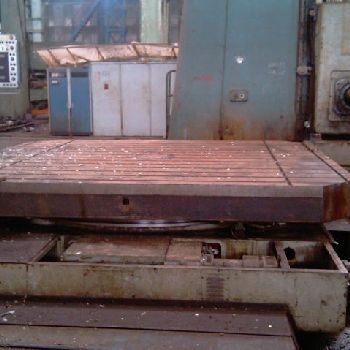

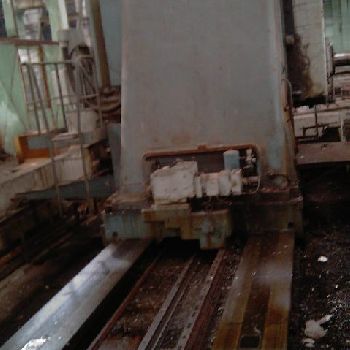

Skoda W250H Floor type boring machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Ukraine |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Skoda |
| Model: | W250H |
| Year of Make: | 1984 |
| Description: | Floor Type Borer Skoda W250H, new in 1984 |Equipped with rotary table S80B |Main parameter: |x=5000 mm |y=4100 mm |z=2000 mm |w=1600 mm|Spindle diameter 250 mm |Spindle rotations 1,6-630 rpm |Column cross travel X 7000mm |Headstock vertical travel Y 4150mm |Ram travel Z 2000mm |Spindle stroke W 1600mm |Working movements: |- column and head 0,5-100 mm/min. |- spindle 50-1000 mm/min. |Rapid movements: |- column and head 3200 mm |- spindle 1600 mm |Weight of the machine 110000 kg |SKODA ROTARY TABLE MODEL S80B |Clamping surface: 4000x3550 mm |workpiece load (max): 80000 kg |w-axis traverse: 2000 mm |Rotation: 360 |Table clamping area 4000x3600 mm |Table weight 52 000 kg |
| Technical Specifications: | X Axis: 5000.0 mm Y Axis: 4100.0 mm Z Axis: 2000.0 mm Table length: 4000.0 mm Table width: 3600.0 mm Spindle diameter: 250.0 mm Max. spindle speed: 630 rpm Overhauled: no Length x width x height: - × - × - Weight: 110000.0 kg State: good At local norms: --------- Status: visible but unplugged |
