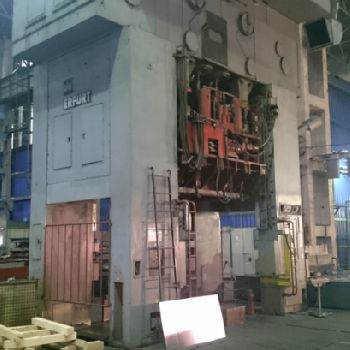

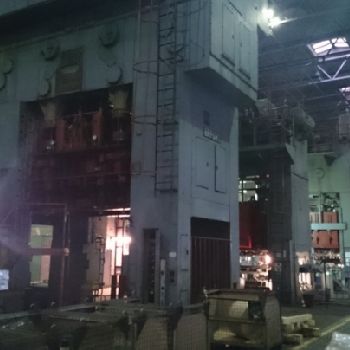

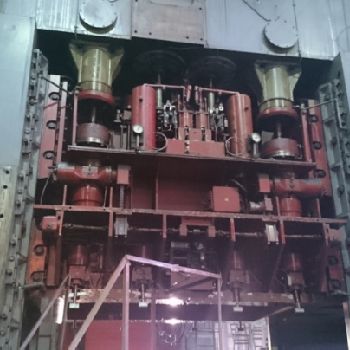

Erfurt PD2-HH-400+250 TS Stamping press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Lithuania |
| Category: | Stamping Presses |
| Manufacturer: | Erfurt |
| Model: | PD2-HH-400+250 TS |
| Year of Make: | 1987 |
| Description: | Manufactured by Erfurt (Germany) |Year of manufacture 1987 |Total capacity, ton 650 |Inner ram capacity, ton 400 |Inner ram stroke, mm 800 |Outer ram capacity, ton 250 |Outer ram stroke, mm 630 |Idle stroke rate 12,5...25 |Min. shut-height of inner ram, mm 1200 |Max. shut-height of inner ram, mm 1600 |Min. shut-height of outer ram, mm 1100 |Max. shut-height of outer ram, mm 1500 |Bed dimensions, mm 3200 x 2000 |Inner ram dimensions, mm 2640 x 1460 |Outer ram dimensions, mm 3200 x 2000 |Die cushion stroke, mm 250 |Die cushion holding capacity, ton 80 |Die cushion ejection capacity, ton 80 |Main motor power, kW 186|Straight side double action sheet stamping press is in good condition. Press is still under power and could be prepared for immediate loading. |
| Technical Specifications: | Type: Mechanical Power in tons: 650 T Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
