PFEIFER F 105 CNC Table type boring machine CNC
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Table Type Boring Mills |
| Manufacturer: | Pfeifer |
| Model: | F 105 CNC |
| Year of Make: | 1991 |

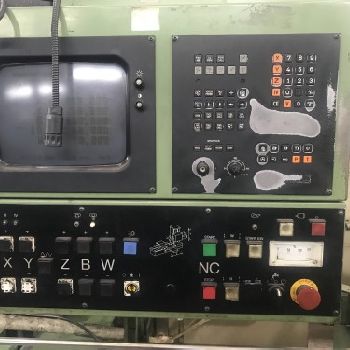

| Description: | Travel |X: 1600 mm |Y: 1000 mm |Z: 1000 mm |Spindle diameter: 105 mm |Spindle mount: ISO 50 |Quill stroke: 500 mm |Distance spindle center to clamping surface: 0 - 1000 mm |Max. Workpiece weight: 4000 kg |Slewing ring diameter: 830 mm |Clamping area: 1000 x 1200 mm |Table height above floor: 875 mm|Accessories |- Control Heidenhain TNC 355 |- Measuring device actual value display X, Y, Z, W |- hydr. clamping |- aut. central lubrication |- Liquid cooling device |- Ball screws X, Y, Z, W |- fixators |- Ampere meter |- oil cooling |- electr. Handwheel HR 250 |- mech. cross handle |used, in good condition |
| Technical Specifications: | CNC: Heidenhain TNC 355 X travel: 1600.0 mm Y travel: 1000.0 mm Z travel: 1000.0 mm Table length: 1000.0 mm Table width: 1200.0 mm Max. workpiece weight: 4000.0 kg Spindle diameter: 105.0 mm Overhauled: no Length x width x height: 4830.0 mm × 3040.0 mm × 2700.0 mm Weight: 10850.0 kg State: good At local norms: --------- Status: visible |
