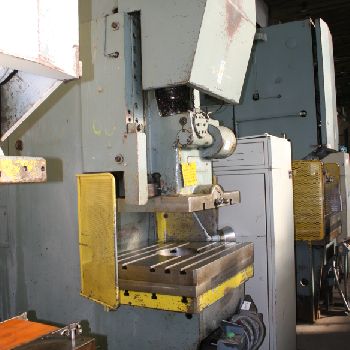

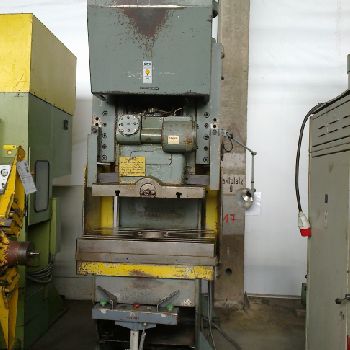

WMW PEE II 160 Single Column Eccentric Press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Eccentric Presses |
| Manufacturer: | WMW Blema Gotha |
| Model: | PEE II 160 |
| Year of Make: | 1974 |

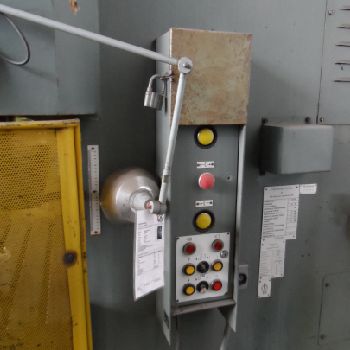

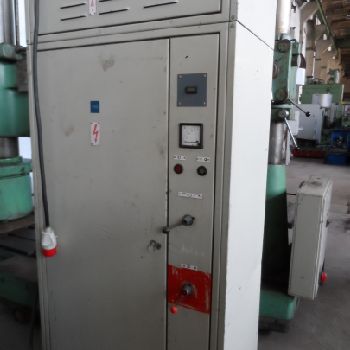

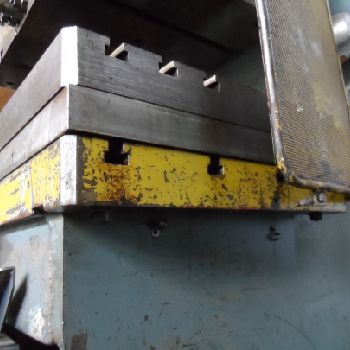

| Description: | single and /or continuous stroke possible |80A; Air pressure 6kp/cm; Oil filling approx.30 Liter |2 clamping plates (1200x760x90mm and 1200x760x70mm faucet hole dia=300mm) |foot control or manual via hand possible |last check record was 2006|can be demonstrated under power!|Technical Details: |pressure: 160 t |slide stroke: 32...140 mm |no. of strokes: 50 strokes/min |throat: 400 mm |dayligth: 400 mm |adjustment of ram slide: 100 mm |table-size: 1000x750 mm |ram surface area: 850x630 mm |tool shank hole: 400x360 mm |total power requirement: 15,5 kW |weight of the machine approx.: 10,5 t |dimensions of machine: L:2,9xB:1,25xH:3,3 mm |dimension L-W-H E-Cabinet: 1,06x0,6x2,0 mm |
| Technical Specifications: | Power in tons: 160 T Table length: 1000.0 mm Table width: 750.0 mm Ram stroke: 140.0 mm Nbr of strokes/min: 50.0 Motor power: 16.0 kW Length x width x height: 2900.0 mm × 1250.0 mm × 3300.0 mm Weight: 10500.0 kg State: in working conditions At local norms: --------- Status: under power |
