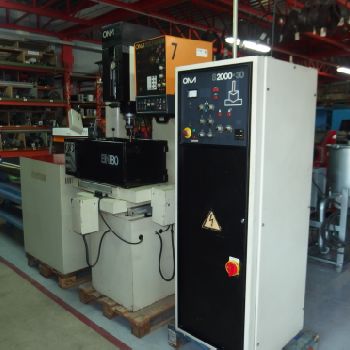

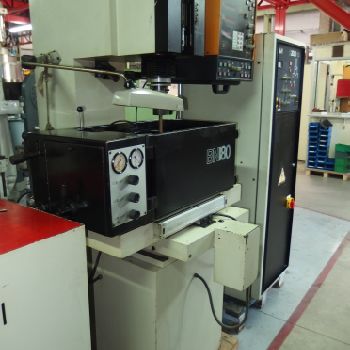

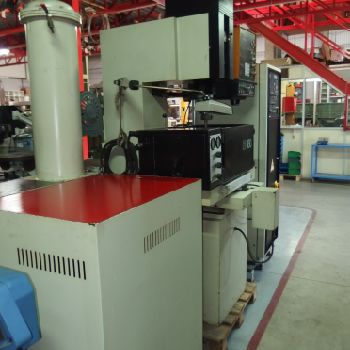

ONA BN180 Die sinking edm machine
$ 4,404
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Die-Sinking EDM Machines |
| Manufacturer: | ONA |
| Model: | BN180 |
| Year of Make: | 1992 |

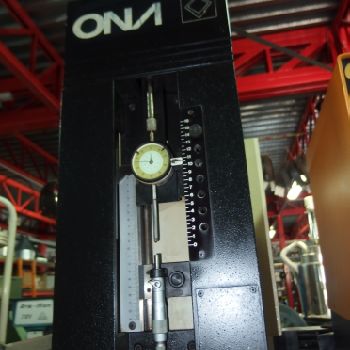

| Description: | Hydraulic pump power of the hydraulic unit: CV 0.33 |Hydraulic unit tank capacity: 25 lt|TABLE |Maximum distance between head and table: 525 mm |Quadrant depth measurement: mm 50 + 25 = 75 |Longitudinal stroke: 300 mm |Cross stroke: 150 mm |Grandparents Division: 0.02 mm |Tank dimensions: 600 x 400 x 225 mm |Table dimensions: 400 x 275 mm |Tolerable weight on the table: KG 450|GENERATOR |Width: 680 mm |Length: 580 mm |Height: 1720 mm |Weight: 200 KG |Power: Amp 30 |Pulse voltage: V 150 |Pulse Rate: Hz 488 / 166,000 |Pulse regulation: 12 |Pause setting: 12 |Volumetric consumption (copper): (% vol) 0.2 |Volumetric consumption (graphite): (% vol) 0.1 |RA roughness (CLA): 0.8 |DELIVERED DISMONTED IN 3 PIECES. |

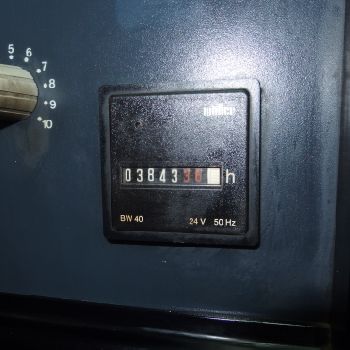

| Technical Specifications: | X Axis: 300.0 mm Y Axis: 150.0 mm Worktank length: 600.0 mm Worktank width: 400.0 mm Worktank height: 225.0 mm Type: CNC Table length: 400.0 mm Table width: 275.0 mm Max. workpiece weight: 450.0 kg Max. machining current: 30 A Length x width x height: - × - × - Weight: - Worked hours: 8300 hours State: good At local norms: --------- Status: visible but unplugged |
