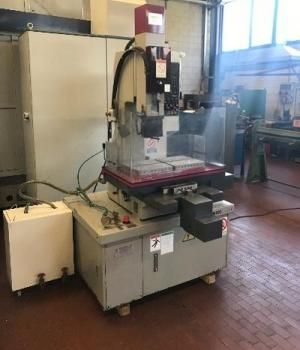

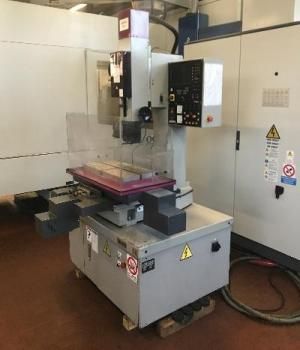

Omega CM 800 C60 A Die sinking edm machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Die-Sinking EDM Machines |
| Manufacturer: | OMEGA |
| Model: | CM 800 C60 A |
| Year of Make: | 1997 |

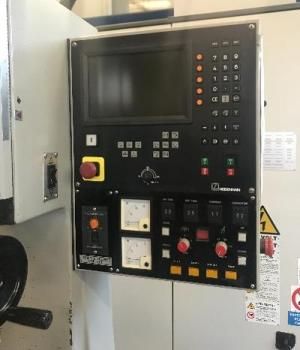

| Description: | Features: OMEGA EDM CM 800 C60A microperforating machine |HEIDENHAIN control, drilling capacity up to 6 mm, table size 460 X 210, maximum piece weight 200 kg, electrode rotation 200 mm / min, electrode length 400 mm, table ceramic guide distance 50-150 mm. |Machine dimensions 1000 X 1000 X 2100 |Machine weight 800 kg. |
| Technical Specifications: | Type: CNC CNC Type: HEIDENHAIN Table length: 460.0 mm Table width: 210.0 mm Max. workpiece weight: 200.0 kg Length x width x height: 1000.0 mm × 1000.0 mm × 2100.0 mm Weight: 800.0 kg State: good At local norms: yes Status: visible |
