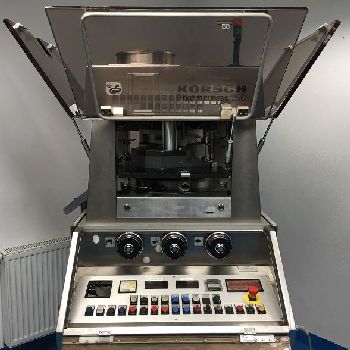

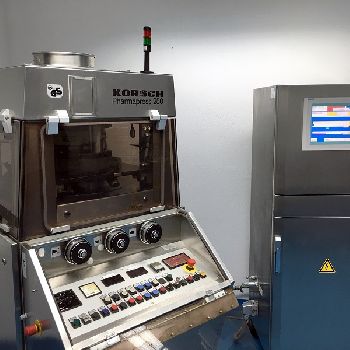

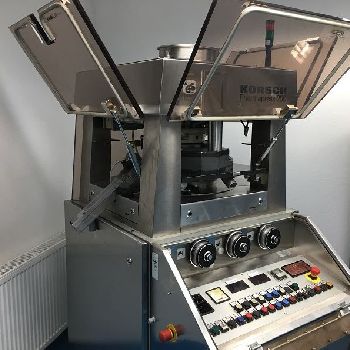

Used Korsch PH 250/20 Rotary tablet press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Tablet Presses |
| Manufacturer: | Korsch |
| Model: | PH 250/20 |
| Year of Make: | 1992 |

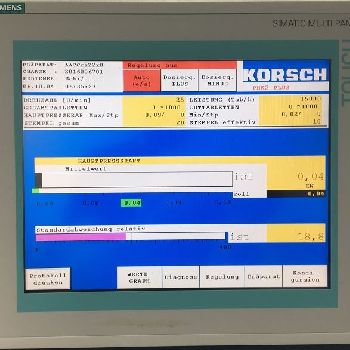

| Description: | - With Korsch PHK2 PLUS control to maintain tablet weight |- Complete documentation for machine and control |- Tested according to maintenance protocol, ready for operation |- Retrofitting according to your requirements possible|-Machine ready after refurbishing May 2018|Manufacturer Korsch |Machine type PH 250/20 |Machines principle rotary tablet press |Year 1992 |Tool type EU 1 "(EU-D) |Tool stations 20 |Guide grooves above and below |Main pressure force max. 80 kN |Pre-pressure force max. 20 kN |Tablet diameter max. 25 mm |Filling max. 22 mm |Bar height of the tablet max. 11 mm |Speed die table 25-90 rpm |Tablet output max. 108,000 pcs./h (with single tool) |Measuring points main pressure force |Fllschuhtyp Kreiselfllschuh |Dimensions complete B1000 x T1260 x H1870 mm |Weight 1,650 kg |
| Technical Specifications: | Capacity: 180000 u/h Tablet Ø: 25.0 mm Pressure: 80 kN Nbr of stations: 20.0 Max depth: 11.0 mm Length x width x height: 1000.0 mm × 1260.0 mm × 1870.0 mm Weight: 1650.0 kg State: good At local norms: yes |
