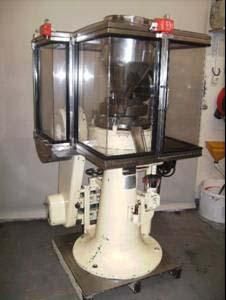

Manesty D3RY Rotary tablet press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Tablet Presses |
| Manufacturer: | Manesty |
| Model: | D3RY |
| Description: | Has 16 stations with maximum output 36000 TPH. Tooling type euro D with upper punch guides for keyed punches. Maximum tablet size 25.4mm diameter with maximum die fill 0-20.5mm. Feeder with open frame. Maximum compression 100 kn. Driven by 1 kW 380/420 volt 3/50 motor. Includes clutch start to the turret, cast steel lower roll Carrier, replaceable phosphor bronze gear ring on the turret head and adjustable upper punch penetration. Reportedly suitable for arduous duty applications such as peppermint production. Parts machine only. |
| Technical Specifications: | Capacity: 36000 u/h Tablet Ø: 25.4 mm Pressure: 100 kN Nbr of stations: 16.0 Max depth: 20.5 mm Electrical power: 420 V Length x width x height: - × - × - Weight: - State: --------- At local norms: --------- |
