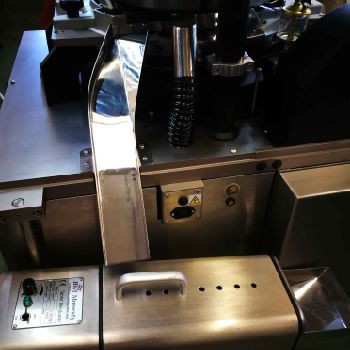

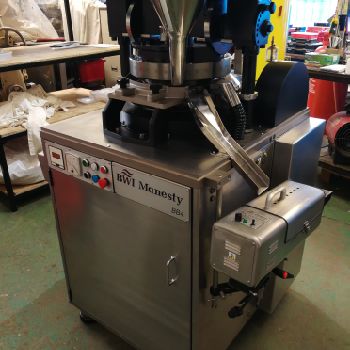

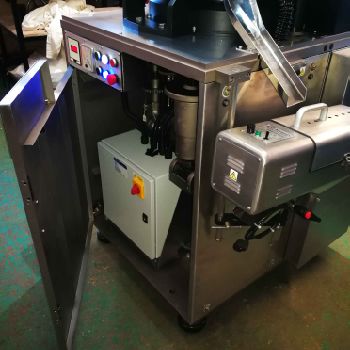

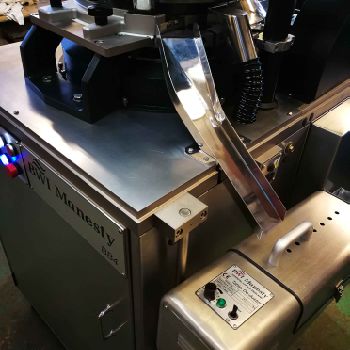

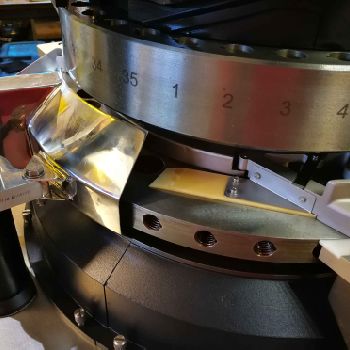

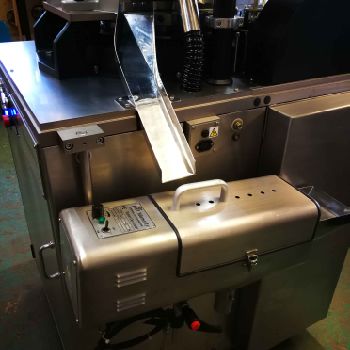

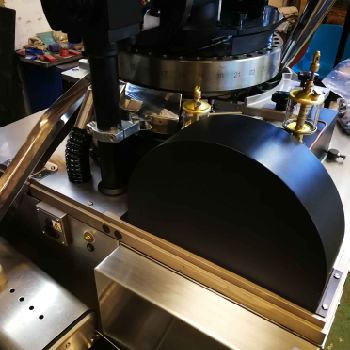

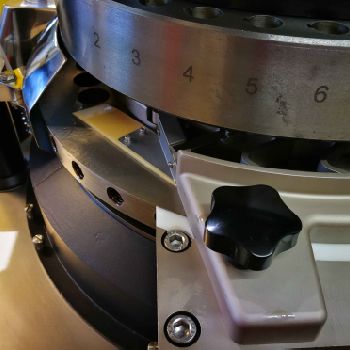

Manesty BB4 35 station slotted tablet press.
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Tablet Presses |
| Manufacturer: | Manesty |
| Model: | BB4 |
| Description: | This unit has been fully overhauled to a very high GMP & engineering standard, the unit also includes 2x overhauled Manesty 25 tablet de-dusters, all ready for production.|Excellent condition 35B slotted turret |Feeders & scrapers, tail over die |Castings Bored & bushed |Lower section nickel plated |New stainless panel on cabinet top |New guard windows |Re-coat of black castings |Re-polished stainless |Complete set of new pins |New pressure rolls x4 |New worm |New worm bearings & seals |New electrical panel & controls |New brake motor |LED lighting in tablet zone|Output per hour Up to 210,000 |Maximum tablet diameter 16mm |Maximum depth of fill 17.46mm |Maximum operating pressure 65kn 6.5tons |Punch type B |Die Type B |Upper punch entry 1.5mm to 8mm |Punch pitch circle dia 384mm |Turret speed 17-50RPM |Maximum pressure standard spring 65kn 6.5tons |Maximum pressure light spring 20kn 2tons |HP main motor 50hz 1500 RPM 3kw 4HP |Electrical su |
| Technical Specifications: | Capacity: 210000 u/h Tablet Ø: 16.0 mm Pressure: 65 kN Nbr of stations: 35.0 Max depth: 17.5 mm Electrical power: 380 V Length x width x height: - × - × - Weight: - Worked hours: 0 hours Hours under power: 0 hours State: like new At local norms: --------- Status: visible |
