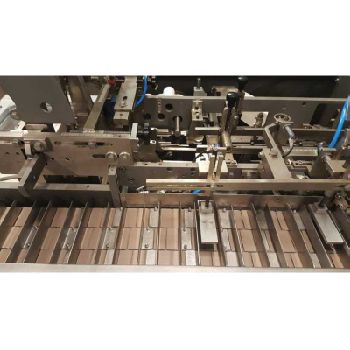

Marchesini BA 100 Cartoning machine / cartoner - Horizontal
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Packaging Machines |
| Manufacturer: | Marchesini |
| Model: | BA 100 |
| Year of Make: | 1984 |
| Description: | Year: 1984 |Rate: up 100 tuis / minute|Used Marchesini BA 100 intermittent motion horizontal cartoner |This machine is suitable for the cosmetic, pharmaceutical and agri-food industries.|Horizontal automatic cartoner designed for bottles and equipped with|Recorder |Carrying Case |Introductory station for oval and rectangular bottles |Embossing encoder |Primary conveyor with maximum width 160 mm |Loading module with inlet screws which brings the bottle facing the tilting station |Toggle switch on the primary conveyor compartment |Technical specifications |Cartons of size 20 * 12 * 55 to 118 * 55 * 170 mm |Power Supply: 380V |Pressure: 6 bars |Consumption: 1 Kw |Overall dimensions: 2700 * 1650 * ht 1500 mm |Weight: 1000 Kg |Rate: up to 100 cartons / minute |Operating Details |Especially designed to meet the main applications for medium production rates. The machines are equipped with a bucket supply chain in which the products to be put in boxes are placed by means of d |
| Technical Specifications: | Capacity units: 100 /min Min length (C): 20.0 mm Max length (C): 118.0 mm Min width (B): 12.0 mm Max width (B): 55.0 mm Min height (A): 55.0 mm Max height (A): 170.0 mm Length x width x height: 2700.0 mm × 1650.0 mm × 1500.0 mm Weight: 1000.0 kg State: good At local norms: yes |
