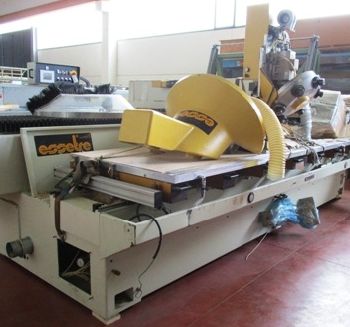

Essetre Spa Computronic4210 TR6 Wood CNC machining centre
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Working Center |
| Manufacturer: | Essetre |
| Model: | Computronic4210 TR6 |
| Year of Make: | 1998 |

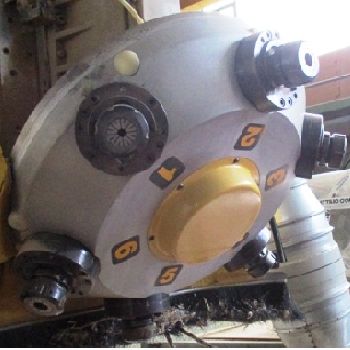

| Description: | Brand: Essetre Spa |Model: COMPUTRONIC4210 TR6 |Description: ESSETRE SPA WORKING CENTER MOD. COMPUTRONIC4210 TR6 - year 1998 Technical data: - max machine floor dimensions mm. 4000x1100 in aluminum - axes controlled by CNC n.3: X, Y, Z - max interpolation speed m7min 28 - automatic tool selection time sec 6 - electrospindle power ESSETRE kw 11 at 180000 rpm - number of spindle head spindles n. 6 - spindle rotation speed rpm from 1000 to 18000 - spindle drive kw 22 - cylinder tool diameter mm. from 3 to 25 - diam. max allowed tool mm. 160 - max tool length allowed mm. 80 - manual tool clamping with gripper - suction head cap diameter: * 2 diam. 140 mm. (TR6) * n.2 diam. 120 mm. (plane) - suction speed m / sec.35 - centralized lubrication tank capacity l.2.7 - vacuum pump flow rate MCH 100-180 - stroke x axis mm. 4200 - travel axis y mm. 1000 - travel axis z mm. 250 - installed machine dimensions mm.3050x5680x2450 (h) - machine dimensions for transport mm.2450x5680x2450 - total mass va |
| Technical Specifications: | X stroke: 4200.0 mm Y stroke: 1000.0 mm Z stroke: 250.0 mm Axis nbr: 3.0 Length x width x height: 3050.0 mm × 5680.0 mm × 2450.0 mm Weight: 4800.0 kg State: good At local norms: yes Status: visible |
