Windsor W 1000-2890
$ 22,703
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Injection Molding Machines |
| Manufacturer: | Windsor |
| Model: | W 1000-2890 |
| Year of Make: | 1991 |

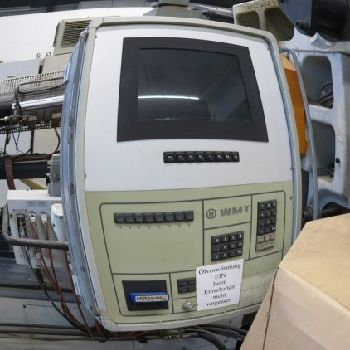

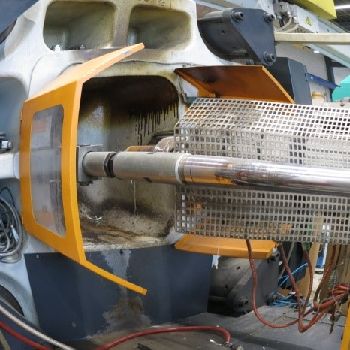

| Description: | Typ / Type: Windsor W 1000-2890 |Baujahr / Year: 1991 |Steuerung / Controller: WMT |Technische Daten / Technical Specifications |Schliekraft / Clamping Force: 1.000 to |Holmabstand / Dist. Betw. Tiebars: 1.400 x 1.120 mm |WZ Einbauhhe / Mould Hight: 700 mm |ffnungsweg / Opening Stroke: 1.500 mm |Schnecke / Screw: 80 mm |Hubvolumen / Shot Volume: 1.600 ccm |spez. Spritzdr. / Injection Pressure: 2.230 bar |Allgemein / General |Motor / Engine: 90 kW |Heizung / Heater: 61 kW |Betriebsstunden / Operating Hours: |Abmessungen / Dimensions: 12,2 x 2,7 x 2.9 m (2 parts together) |Gewicht / Weight: 42,0 t |Zubehr / Equipment |Bildschirmtext / Screen Text: Deutsch / german |Handbuch / Manual: Deutsch / german |Materialtrichter / Hopper: Nein / No |Kernzug / Core Pulls: 2 x Pneumatic |Luftventil / Air Valve: Ja / Yes |Sonstiges / Other |Standort / Location: Lager / on stock |Lieferzeit / Delivery Time: Sofort / Now |Lieferbedingungen / Delivery Terms: Ab Werk frei v |
| Technical Specifications: | Clamping force: 1000 T Screw diameter: 80.0 mm Tie bar spacing (H): 1400.0 mm Tie bar spacing (V): 1120.0 mm Shot volume: 1600.0 cm³ Pressure on material: 2230 bar Opening of the press: 1500.0 mm Mould size: 700 Length x width x height: 12200.0 mm × 2700.0 mm × 2900.0 mm Weight: 42000.0 kg State: good At local norms: --------- Status: visible |
