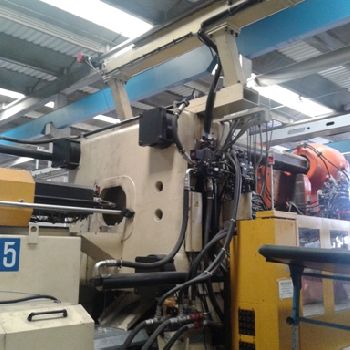

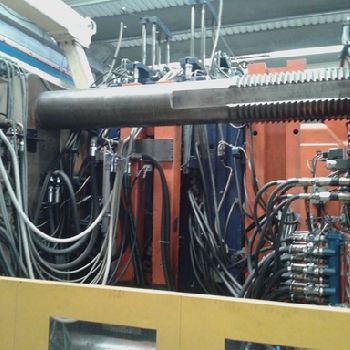

Husky E-Line 2700 RS 155/135 Injection moulding machine
$ 225,838
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Injection Molding Machines |
| Manufacturer: | HUSKY |
| Model: | E-Line 2700 RS 155/135 |
| Year of Make: | 2002 |
| Description: | Retrofit of control in 2007. |Force: 2700 Tn |Screw diameter 160 mm. |Injection weight: 9500 g. |Injection volume: 1150 cm3 / sec. |Injection pressure: 1596 bar. |Distance between tie-bars: 2150 x 1700 mm. |Movement of the mobile plate: 3220 mm. |Max / min mold: 2200/1000 mm. |Centering ring: 250 mm. |3 + 3 cores |Installed power: 392 kW |Voltage: 380 volts III 50 Hz |Double robot Wittmann W633 (2004) servo-electric. |Double removable plate. |Instruction book. |Dimensions of the machine: 15900 x 4710 x 9710 mm. |Weight: 175 Tn |CE regulations |
| Technical Specifications: | Clamping force: 2700 T Screw diameter: 160.0 mm Tie bar spacing (H): 2150.0 mm Tie bar spacing (V): 1700.0 mm Shot volume: 10000.0 cm³ Shot weight: 9500.0 g Pressure on material: 1150 bar Opening of the press: 3220.0 mm Mould size: 2200/1000 Length x width x height: 15900.0 mm × 4710.0 mm × 9710.0 mm Weight: 175000.0 kg State: excellent At local norms: yes Status: dismantled |
