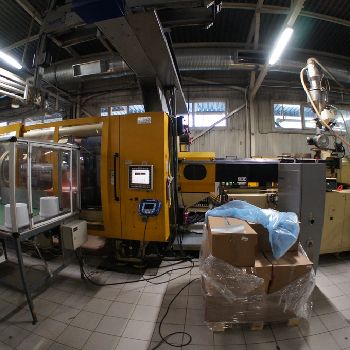

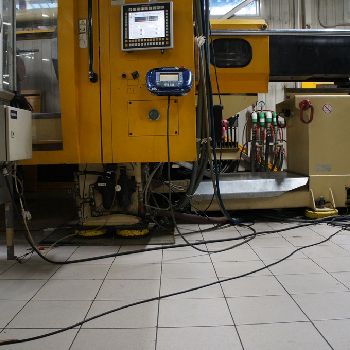

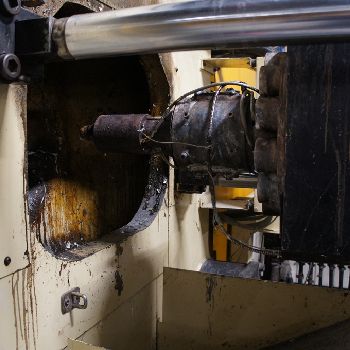

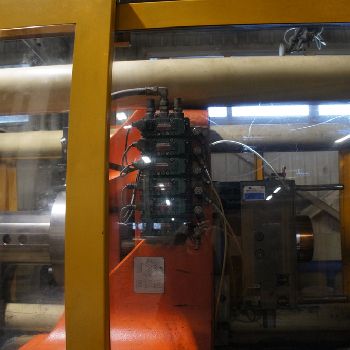

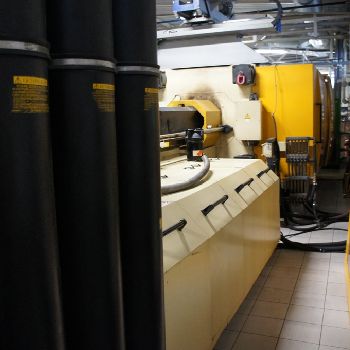

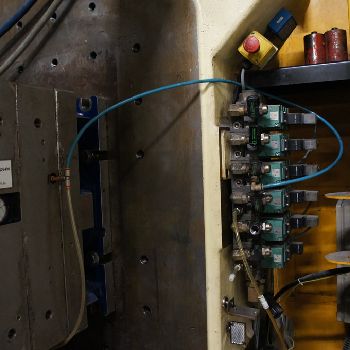

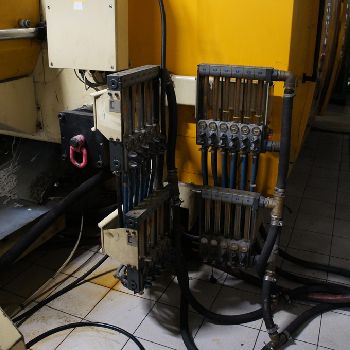

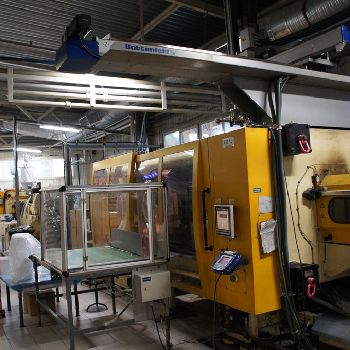

Husky Hylectric H800 Injection moulding machine
$ 237,956
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Injection Molding Machines |
| Manufacturer: | HUSKY |
| Model: | Hylectric H800 |
| Year of Make: | 2007 |
| Description: | Husky Hylectreic H800 RS135 / 115 |Production date 05.2007|In 2017, a modernization was carried out (replacing IPC with a core i7) and replacing all RVD and gasket sets with a Husky Russia representative office. |Supporting documents and audit results available. |Additional information on request.|Specifications: |Type HUSKY H800 RS135 / 115 |Country of manufacture Canada |Year of release 2003 |Clamping force, 8000 kN |Mold height, max 1200 mm |Mold height, min 500 mm |Diameter of the screw, 115 mm |The distance between the columns 1320x1220 |The maximum volume of the cylinder, 6232 cm3 |Maximum injection pressure 2205 bar |Injection rate, 4253 cm3 / s |L / D 25/1 |The volume of hydraulic fluid, 2800 l |Heater power, 101 KW |Dimensions (LxWxH), 14057x3615x2580 mm |Weight, 54 tons |
| Technical Specifications: | Clamping force: 800 T Screw diameter: 115.0 mm Tie bar spacing (H): 1320.0 mm Tie bar spacing (V): 1220.0 mm Shot volume: 6232.0 cm³ Pressure on material: 2205 bar Platen lenght: 1700.0 mm Platen width: 1750.0 mm Opening of the press: 200.0 mm Length x width x height: 14057.0 mm × 3615.0 mm × 2580.0 mm Weight: 54000.0 kg Hours under power: 75034 hours State: excellent At local norms: --------- Status: in production |
