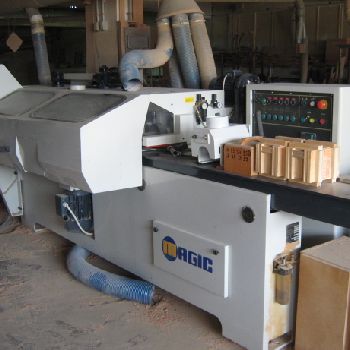

FOUR SIDES MOULDER mod. FORMA 22/6
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Greece |
| Category: | Molding Machines |
| Manufacturer: | Magic |
| Model: | FORMA 22/6 |
| Year of Make: | 2004 |

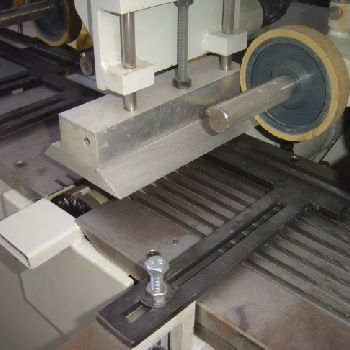

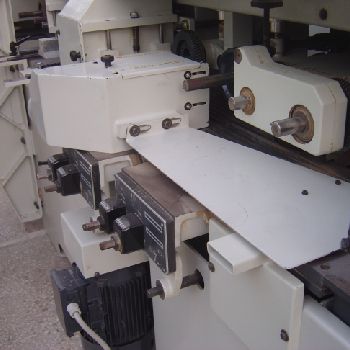

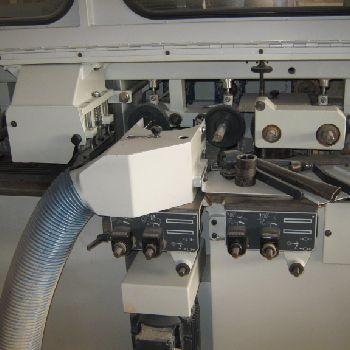

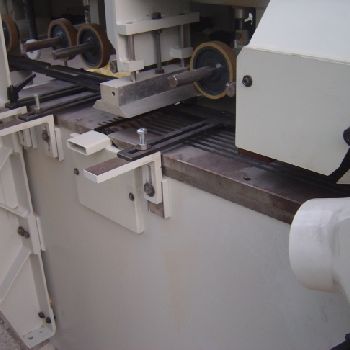

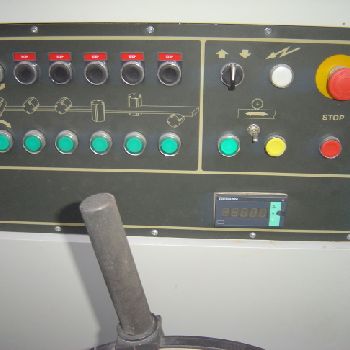

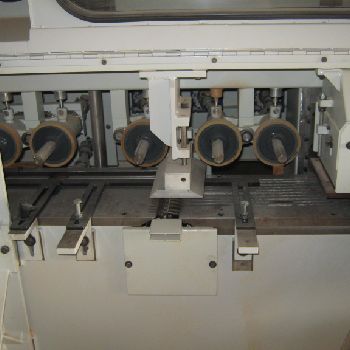

| Description: | FOUR SIDES MOULDER mod. FORMA 22-6 |Machine frame | Base in full cast-iron torsion free | All tables and guides have rectified finishing | Both the in-feed table, standard 2.000 mm. long, and the side fence are adjustable by means of a parallelogram system to guarantee quick and accurate positioning | Full insulated sound proof cabin to guarantee max. safety for the worker and the lowest level noise | Table lubrication by manual pump Controls | All mechanical controls for setting and adjustment of the machine are positioned in-line on the front of the machine itself | Any setting operation allowed by the safety rules when machine switched on can be executed from outside without opening the sound proof cabin | Mechanical readout for any single adjustment |Feeding system | The system is made by gears and cardan joints, without chains, both for upper rolls and feeding rolls underneath the working table | Feeding motor with variable speed | The toothed rolls are tempered and c |
| Technical Specifications: | Working width: 220.0 mm Working height: 120.0 mm Shafts diameter: 40.0 mm Sound proof cabin: Yes Feeding table length: 2000.0 mm Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
