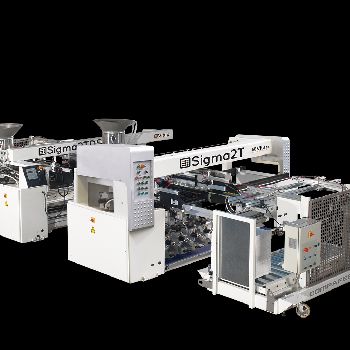

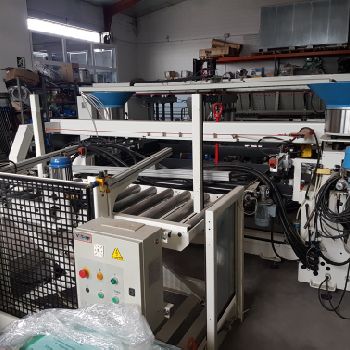

Vitap SIGAMA 2T Drilling line and inserter of automatic dowels
$ 44,313
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Drilling / Doweling |
| Manufacturer: | VITAP |
| Model: | SIGAMA 2T |
| Description: | Drilling line and inserter of automatic dowels with feeder and unloader of occasion|1.- Hydraulic lifting table with motorized rollers for the entry of the parts package and the automatic introduction in the drill.|- Maximum dimensions of panels to be loaded: 2800 x 650 mm |- Minimum dimensions of panels to be loaded: 400 x 300 mm. |- Maximum stack height: 700 mm. |- Pieces per minute to load: 15-25 |- Hydraulic pump motor power: 3.3 kW.|1.- Multiple line drill. Brand VITAP, SIGAMA 2T model with automatic entry and exit of the pieces to be drilled|- 4 lower drilling groups with 18 drill bits each, divided into 2 (9 drills each) with 0-90 rotation. |- Motor power of each group: 1.1 kW. |- 2 upper drilling groups with 18 drills each, divided into 2 (9 drills each) with 0-90 rotation. |- 1 group of horizontal drilling left of 21 drill bits |- 1 group of right horizontal drilling of 21 drill bits |- Maximum measure to work: 3000 mm. |- Digital position measurement indicators|1.- |
| Technical Specifications: | Engine power: 3.3 kW Length x width x height: - × - × - Weight: - State: good At local norms: yes Status: visible |
