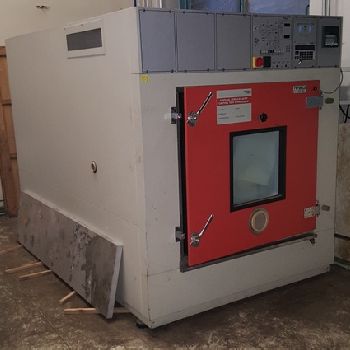

Heraeus Vötsch VUK 08/1500
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Measuring & Testing Machines Accessories / Spare Parts |
| Manufacturer: | Heraeus |
| Model: | VUK 08/1500 |
| Year of Make: | 1987 |
| Description: | Power range for temperature tests: |- temperature range: |- -80 C to + 180 C |- temperature deviations: |- see the table below |- heating the medium without test specimens: |- 1.5 C / min to -70 C |- 1.0 C / min to -80 C |Heat compensation: |- + 20 C approx. 1600 W |- 0 C approx. 1100W |- -20 C approx. 800W |- -40 C approx. 600W |- -60 C approx. 300 W |- -80 C approx. 50W |performance range for climatic tests: |- Temperature range + 10 C to + 90 C |- wet area: see the following diagram |- wet deviations: see the following table |- air: about 0.1 to 4 m3 / h |size and weight: |- Dimensions in mm: |- test area: |- width a = 1000 |- Depth b = 1500 |- height c = 1000 |- Weight approx. 1.800 kg net |execution: |- test area: |- stainless steel, material 1.4301 |- Floor load max. 300 kg / m2 |- Spot load max. 30 kg |- alignment of over and underpressure |- air guidance: |- fan with external motor |- suction at the rear |- air supply on all si |
| Technical Specifications: | Length x width x height: - × - × - Weight: 1800.0 kg State: good At local norms: --------- Status: visible but unplugged |
