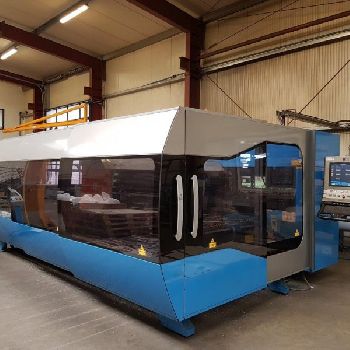

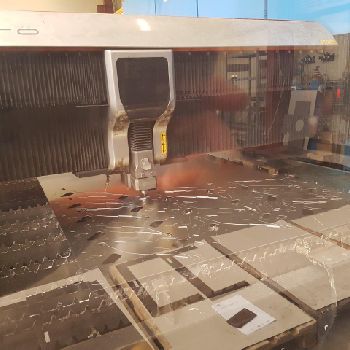

Prima Zaphiro laser cutting machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Laser Cutting Machines |
| Manufacturer: | Prima |
| Model: | Zaphiro |
| Year of Make: | 2010 |
| Description: | Beautiful condition Prima Zaphiro CV5000 5kW (2010) |Includes PRIMACH-30L Controller |w/ New CV5000 resonator fitted in 2014. |Very low hours: 6000 Beam on Hours!|Specs |Machine width (mm) 3.600 |Machine length (mm) 9.700 |Machine weight (kg) 10.000 |Total power required (kVA) 83 |Simultaneous positioning speed (X+Y m/min) 240 |Positioning speed X/Y (m/min) 170 |Max. laser power (Watt) 5.000 |Max. workpiece weight (kg) 900 |Working area (X*Y*Z, mm) 3.050 x 1.600 x 150 |
| Technical Specifications: | Power: 5000.0 W CNC: yes CNC type: PRIMACH-30L Controller Travel X: 3050.0 mm Travel Y: 1600.0 mm Travel Z: 150.0 mm Max weight of the workpiece: 900.0 kg Option to cut tubes: no Length x width x height: 3600.0 mm × 9700.0 mm × - Weight: 10000.0 kg Hours under power: 6000 hours State: excellent At local norms: --------- Status: dismantled |
