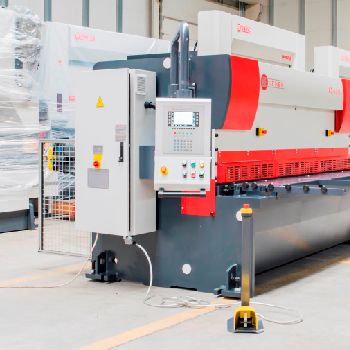

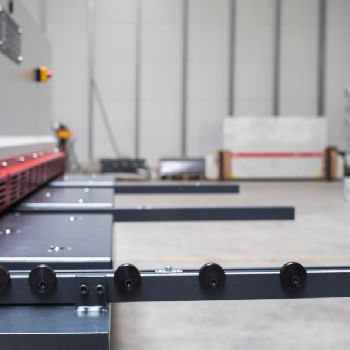

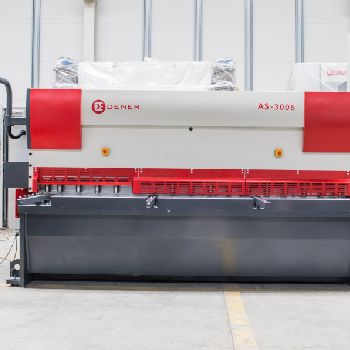

Used Dener BS 3100x6 mm CNC shears
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | Plate Shears |
| Manufacturer: | Dener |
| Model: | BS 3100x6 mm |
| Description: | TECHNICAL FEATURES: | Maximum cutting capacity 6mm | Useful cutting length 3100mm | Adjustable blade gap | cutting light thread | Videographic programmer - NEW MAPER HT071 | Rear register - 1,000 mm stroke with recirculating ball screw and AC motor | Front support: bench with spheres, 1,000 mm extensions, 1000 mm sheet metal support with T-slots | 2-wire upper blade and 4-wire lower blade | Recess depth - 150 mm | Adjustment of blade and manual interspaces by handwheel | Cutting line - lighting with shadow line | Recess guards, back and front guards for hands that can be opened for a length of 1 m | Pedal with emergency button | Electrical system - 380 V, 50-60 Hz, 3 Ph | Hydraulic pistons | Cutting length adjustable | Emergency buttons | Cutting length 3,120 mm | Maximum permissible thickness 6 mm | Cutting angle 1.39 degrees | NR. cuts per minute 18 | NR. sheet metal press cylinders 15 | Main motor power 11 kW | Oil tank capacity 200 liters | 3.300 mm gap bet |
| Technical Specifications: | Cutting length: 3100.0 mm Max. cutting thickness: 6.0 mm Max. cutting angle: 1.4 ° Back gauge type: Motorised Backgauge adjustment: 1000.0 mm Sheet support: Yes Length x width x height: - × - × - Weight: - State: excellent At local norms: yes Status: visible |
