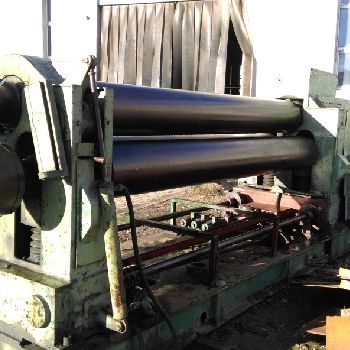

Used Strojarne Piesok 3150/10 Plate rolling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Plate Rolling Machines |
| Manufacturer: | Strojarne Piesok |
| Model: | 3150/10 |
| Year of Make: | 1973 |
| Description: | Technical data: |Number of rolls: 3 |Cold rolling: |- Maximum thickness of the pre-bending sheet: 10mm |- Maximum thickness of sheet metal bending (flexion after initial) 14mm |Weight: 24 700 kg |The maximum length of the workpiece: 3150mm |Overall dimensions: 6300 x 1600 x 1850 mm (L. X W x H). |Minimum bending diameter: 450mm |Scope (tensile strength of 500 MPa to 280 MPa yield) |The possibility of folding profiles |Bending profiles (after bending pre-) 100x100x10 mm |Bending speed of 8 m / min |Adjusting the lower roll of 200 mm / min|Engine power: |- Rotating rollers (main engine) 22 kW |- Lower cylinder 2x17 kW |- Hydraulic unit 0.8 kW |Working fluid pressure 4 MPa |
| Technical Specifications: | Working length: 3150.0 mm Max. thickness: 14.0 mm Mechanical/Hydraulic: Hydraulic Nbr of rolls: 3.0 Upper roll Ø: 360.0 mm Lower/lateral roll Ø: 360.0 mm Motor power: 22.0 kW Prebending: Yes Length x width x height: 6300.0 mm × 1300.0 mm × 1850.0 mm Weight: 24700.0 kg State: good At local norms: --------- Status: visible |
