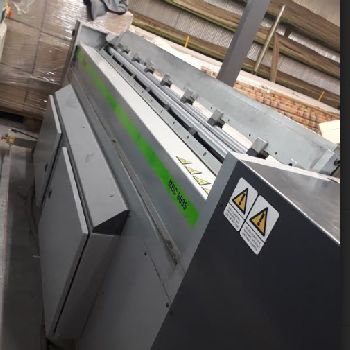

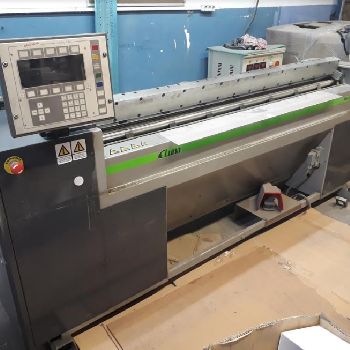

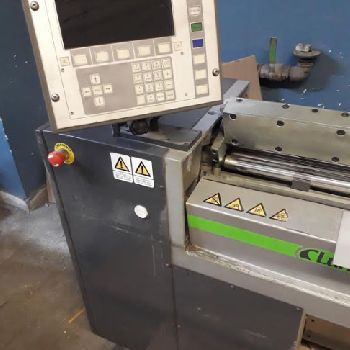

Luna MBC 8835 rolling machine for the production of small radius louvres and reflectors
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Turkey |
| Category: | Plate Rolling Machines |
| Manufacturer: | Luna |
| Model: | MBC 8835 |
| Year of Make: | 2010 |
| Description: | The MBC 8835 is a roll bending machine for the production of small radius louvres and reflectors to meet the demands of the latest small diameter light tubes.|The machine is designed with three independant bottom rolls to reduce production time to a minimum. All rolls run in adjustable support bearings to permit easy roll adjustment for materials of different hardness and thickness. The top roll crowning is carried out by means of a crossbeam, which tilts to make room for the bent part.|4-Rolls CNC Controlled Machine specialized for production for louvres and reflectors of 0,2-0,7mm Sheet thickness (Aluminium)|Characteristics of the Luna MBC 8835 CNC rolls: | CNC-control with the capacity to store 200 programs. | Pre-bending and final bending in one cycle. | All four rolls are driven. | All axis are programmable. | All movements are mechanical for highest accurracy. | Can bend complicated elliptical shapes. | Adjustable crowning of all four rolls.|Model MBC 8835 - |Working leng |
| Technical Specifications: | Working length: 1890.0 mm Length x width x height: - × - × - Weight: 900.0 kg State: excellent At local norms: --------- Status: visible |
