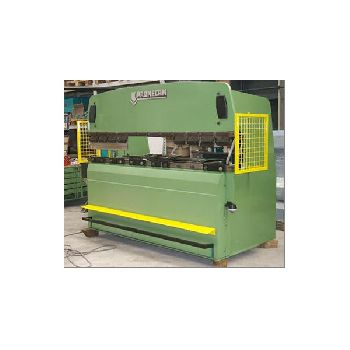

PROMECAM RG 50.25 Press brake
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Press Brakes |
| Manufacturer: | PROMECAM |
| Model: | RG 50.25 |
| Year of Make: | 1971 |
| Description: | Maximum force 50 T |Max length to bend 2 505 mm |Length between frames 2 160 mm |Lower deck stroke 100 mm |Gooseneck 400 mm |Distance between the table and the slide 300 mm |Approach speed 45 mm / s |Working speed 7 mm / s |Descent speed 60 mm / s |4 CV engine |Dimensions L x w x H 2550 x 1385 x 1930 mm |Approximate weight 3,500 Kg |2-axis view DB2 type |Pump unit type 50-81726-13 n 1650 |flow rate 10 L / min pressure 240 bars, power 5.5 Cv |
| Technical Specifications: | Strength: 50 T Folding length: 2505.0 mm Distance between uprights: 2160.0 mm Throat: 400.0 mm Vertical stroke: 100.0 mm Working speed: 7.0 mm/s Axis number: 2.0 Motor power: 3.0 kW Length x width x height: 2550.0 mm × 1385.0 mm × 1930.0 mm Weight: 3500.0 kg State: good At local norms: yes Status: visible |
