Morgan Rushworth PBS 4100/240 Press brake cnc/nc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Press Brakes |
| Manufacturer: | Morgan Rushworth |
| Model: | PBS 4100/240 |
| Year of Make: | 2016 |

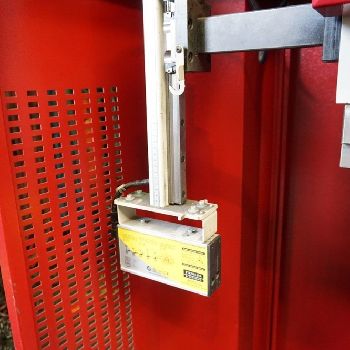

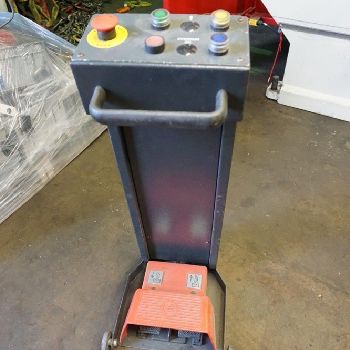

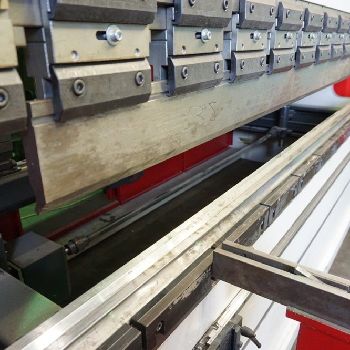

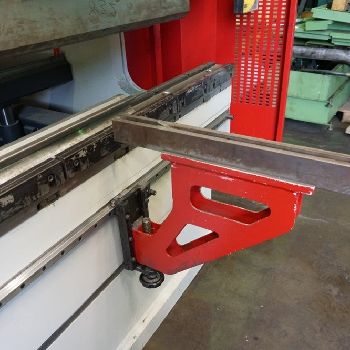

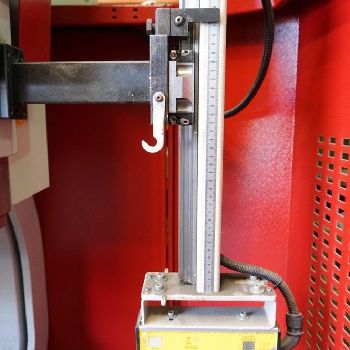

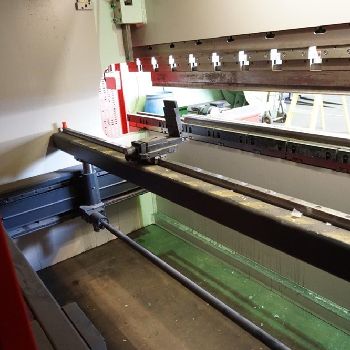

| Description: | Year of Manufacture 2016 |Control ESA S630 |Back gauge Yes |Guards Fiessler AKAS - LC II |Capacity 4100mm x 240 Ton |Maximum length of bend 4100mm |Between frames 3550mm |Daylight 530mm |Throat depth 410mm |Stroke length 260mm |Bed width 90mm |Input 415/3/50hz |Tooling Full length bottom multi vee & 3340 mm top tooling |Actuated via Wander type foot switch |Fitted with Electrically Interlocked Side ane Rear Guards |Equipment 2 x front support arms, 4 x back gauge fingers |X=Back gauge in/out X axis travel 1000mm, X axis speed 350 mm per second |Y=Beam rise & fall Y1, Y2 approach speed 90 mm per second, bending speed (max) 7.6 mm per second, return speed 80 mm per second |R=Fingers rise & fall R axis travel 160mm, axis speed 240 mm per second |Length 5070mm |Width 2500mm |Height 2730mm |Nett weight actual. 13.2 tons / 13,350 Kgs |
| Technical Specifications: | Strength: 240 T Folding length: 4100.0 mm Distance between uprights: 3550.0 mm CNC: ESA S630 Throat: 410.0 mm Vertical stroke: 260.0 mm Axis number: 4.0 Motor power: 22.0 kW Length x width x height: 5070.0 mm × 2500.0 mm × 2730.0 mm Weight: 13350.0 kg State: good At local norms: yes |
