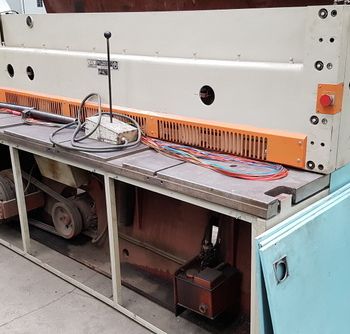

Strojáreň Piesok NTE 2500/4 B hydraulic shear
$ 9,783
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Plate Shears |
| Manufacturer: | Strojarne Piesok |
| Model: | NTE 2500/4 B |
| Description: | Cutting length 2550 mm |The maximum thickness of 500 MPa of 4 mm |Smallest strip width of 40 mm |Largest width of longitudinally cut strips of any length of 200 mm |Cutting force 152 kN |Angle between knives 1 30’ |Number of cutting strokes 50 / min |Number of usable cuts at the highest sheet thickness of 25 / min |Holding force range 0-22 kN |Extension 200 mm |Material stop adjustable 0-600 mm |Power of the main electric motor 7.5 kW |Scissors Dimensions: Length x width 2920x2100 mm |height 1600 mm |working height 900 mm |Scissor weight 5800 kg |Price by agreement. |
| Technical Specifications: | Cutting length: 2550.0 mm Max. thickness: 4.0 mm Length x width x height: 2920.0 mm × 2100.0 mm × 1600.0 mm Weight: 5800.0 kg State: good At local norms: --------- Status: visible but unplugged |
