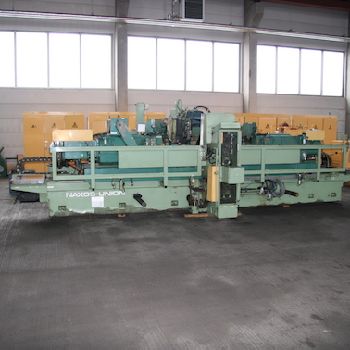

Naxos Union Ka 630X1500 Tool grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Turkey |
| Category: | Grinding Machines |
| Manufacturer: | Naxos |
| Model: | Union Ka 630X1500 |
| Year of Make: | 1990 |
| Description: | Product name naxos union ka 630x1500 nc crankshaft crankshaft grinding machine|Brandy naxos union|Modelili / year 1990|Origin Germany|Max. Crankshaft length 1500 mm|Max. Distance between holders 1250 mm|Min. Distance between holders 250 mm|Max. Weight of workpiece 500 kg|Max. Oscillating diameter of crankshaft 630 mm|Grinding wheel diameter 760 - 1060 mm|Bore hole in the grinding wheel 304,8 mm|Max. Oscillating diameter of stretching device 630 mm|Stroke radius, adjustable 60-90 mm|Max. Stretching diameter 150 mm|Max. Travel of grinding wheel 480 mm|Axial adjustment of grinding spindle 5 mm|Leistung 30 kw|Engine speeds, adjustable 1500 u / min|Grinding wheel peripheral speed 45 m / s|Max.Torque of workpiece engine 27,0 / 19,5 nm|Workpiece speed range 50 - 150 u / min|Max.Torque of table motor, z-axis 20 / 16.9 nm|Table travel speeds 50 - 6000 mm / min|Max.Torque grinding wheel head -, x-axis 13 / 11.4 nm|Feed speed 0.06 - 5000 mm / min|Space requirement 9,5 x 5,0 m|Weight of machine 25 |
| Technical Specifications: | Wheel diameter: 1060.0 mm Max. wheel speed: 1500 u/mn Spindle power: 30.0 kW Length x width x height: 9500.0 mm × 5000.0 mm × - Weight: 25000.0 kg State: good At local norms: --------- |
